User Segmentation¶

Scenario: SLO validation with user segmentation

User segmentation is the ability to carve out a specific segment of users for an experiment, leaving the rest of the users unaffected by the experiment.

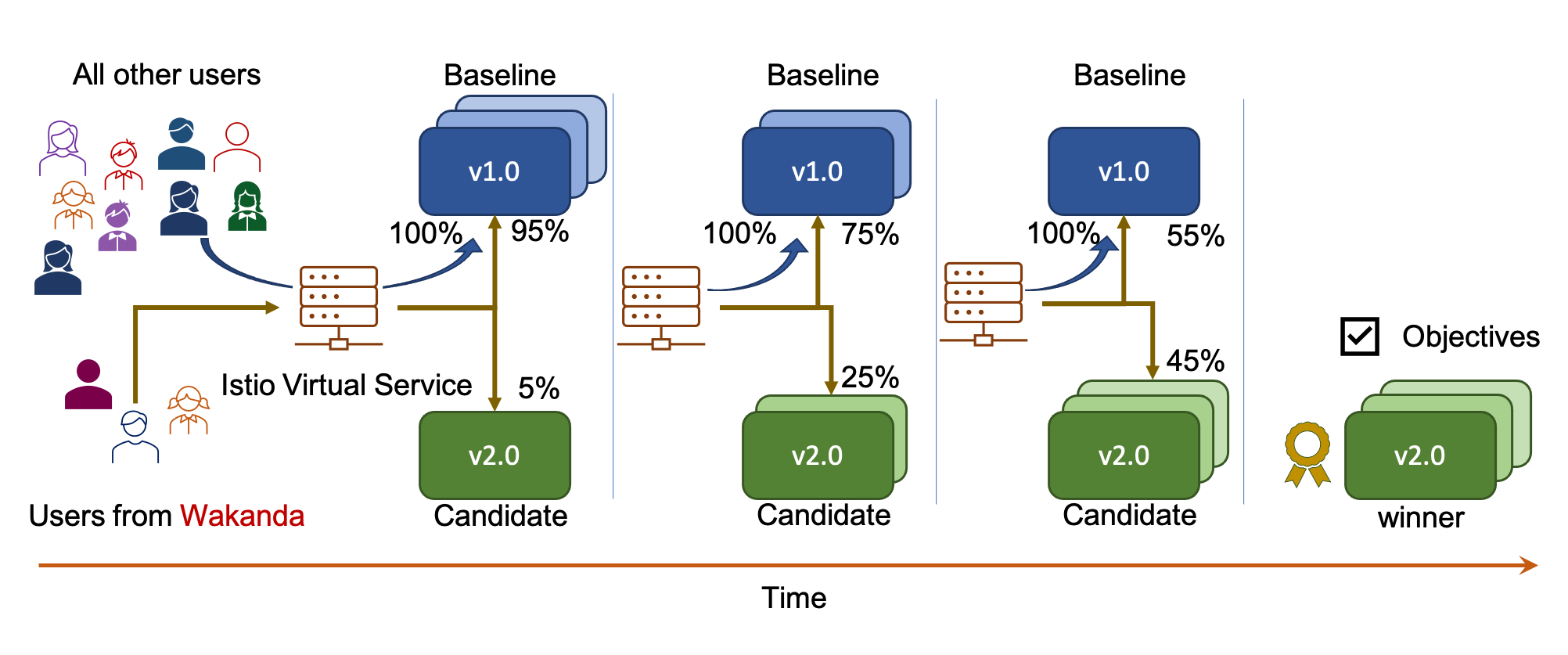

In this tutorial, we will segment users into two groups: those from Wakanda, and others. Users from Wakanda will participate in the experiment: specifically, requests originating in Wakanda may be routed to baseline or candidate; requests that are originating from Wakanda will not participate in the experiment and are routed only to the baseline The experiment is depicted below.

User segmentation

Before you begin...

This tutorial is available for the following K8s stacks.

Knative

Please choose the same K8s stack consistently throughout this tutorial. If you wish to switch K8s stacks between tutorials, start from a clean K8s cluster, so that your cluster is correctly setup.

Steps 1 to 3¶

Please follow steps 1 through 3 of the quick start tutorial.

4. Create versions¶

kubectl apply -f $ITER8/samples/knative/user-segmentation/services.yaml

Look inside services.yaml

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: sample-app-v1
  namespace: default
spec:
  template:
    metadata:
      name: sample-app-v1-blue
      annotations:
        autoscaling.knative.dev/scaleToZeroPodRetentionPeriod: "10m"
    spec:
      containers:
      - image: gcr.io/knative-samples/knative-route-demo:blue
        env:
        - name: T_VERSION
          value: "blue"
---
apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: sample-app-v2
  namespace: default
spec:
  template:
    metadata:
      name: sample-app-v2-green
      annotations:
        autoscaling.knative.dev/scaleToZeroPodRetentionPeriod: "10m"
    spec:
      containers:
      - image: gcr.io/knative-samples/knative-route-demo:green
        env:
        - name: T_VERSION
          value: "green"

5. Create routing rule¶

kubectl apply -f $ITER8/samples/knative/user-segmentation/routing-rule.yaml

Look inside routing-rule.yaml

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: routing-for-wakanda
spec:
  gateways:
  - mesh
  - knative-serving/knative-ingress-gateway
  - knative-serving/knative-local-gateway
  hosts:
  - example.com
  http:
  - match:
    - headers:
        country:
          exact: wakanda
    route:
    - destination:
        host: sample-app-v1.default.svc.cluster.local
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: sample-app-v1-blue
            Host: sample-app-v1.default
      weight: 100
    - destination:
        host: sample-app-v2.default.svc.cluster.local
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: sample-app-v2-green
            Host: sample-app-v2.default
      weight: 0
  - route:
    - destination:
        host: sample-app-v1.default.svc.cluster.local
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: sample-app-v1-blue
            Host: sample-app-v1.default

6. Generate traffic¶

TEMP_DIR=$(mktemp -d)
cd $TEMP_DIR
curl -L https://istio.io/downloadIstio | ISTIO_VERSION=1.8.2 sh -
istio-1.8.2/bin/istioctl kube-inject -f $ITER8/samples/knative/user-segmentation/curl.yaml | kubectl create -f -
cd $ITER8

Look inside curl.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: curl
spec:
  template:
    spec:
      activeDeadlineSeconds: 6000
      containers:
      - name: curl-from-gondor
        image: tutum/curl
        command:
        - /bin/sh
        - -c
        - |
          while true; do
          curl -sS example.com -H "country: gondor"
          sleep 1.0
          done
      - name: curl-from-wakanda
        image: tutum/curl
        command:
        - /bin/sh
        - -c
        - |
          while true; do
          curl -sS example.com -H "country: wakanda"
          sleep 0.25
          done
      restartPolicy: Never

7. Create Iter8 experiment¶

kubectl wait --for=condition=Ready ksvc/sample-app-v1
kubectl wait --for=condition=Ready ksvc/sample-app-v2
kubectl apply -f $ITER8/samples/knative/user-segmentation/experiment.yaml

Look inside experiment.yaml

apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: request-routing
spec:
  # this experiment uses the fully-qualified name of the Istio virtual service as the target
  target: default/routing-for-wakanda
  strategy:
    # this experiment will perform a canary test
    testingPattern: Canary
    deploymentPattern: Progressive
  criteria:
    # mean latency of version should be under 50 milliseconds
    # 95th percentile latency should be under 100 milliseconds
    # error rate should be under 1%
    objectives:
    - metric: iter8-knative/mean-latency
      upperLimit: 50
    - metric: iter8-knative/95th-percentile-tail-latency
      upperLimit: 100
    - metric: iter8-knative/error-rate
      upperLimit: "0.01"
  duration:
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about versions used in this experiment
    baseline:
      name: current
      variables:
      - name: revision
        value: sample-app-v1-blue
      weightObjRef:
        apiVersion: networking.istio.io/v1alpha3
        kind: VirtualService
        name: routing-for-wakanda
        namespace: default
        fieldPath: .spec.http[0].route[0].weight
    candidates:
    - name: candidate
      variables:
      - name: revision
        value: sample-app-v2-green
      weightObjRef:
        apiVersion: networking.istio.io/v1alpha3
        kind: VirtualService
        name: routing-for-wakanda
        namespace: default
        fieldPath: .spec.http[0].route[1].weight

8. Observe experiment¶

Please follow Step 8 of the quick start tutorial to observe the experiment in realtime. Note that the experiment in this tutorial uses a different name from the quick start one. Replace the experiment name quickstart-exp with request-routing in your commands. You can also observe traffic by suitably modifying the commands for observing traffic.

Understanding what happened

You configured two Knative services corresponding to two versions of your app in services.yaml.
You used example.com as the HTTP host in this tutorial.
- Note: In your production cluster, use domain(s) that you own in the setup of the virtual service.
You set up an Istio virtual service which mapped the Knative services to this custom domain. The virtual service specified the following routing rules: all HTTP requests to example.com with their Host header or :authority pseudo-header not set to wakanda would be routed to the baseline; those with wakanda Host header or :authority pseudo-header may be routed to baseline and candidate.
The percentage of wakandan requests sent to candidate is 0% at the beginning of the experiment.
You generated traffic for example.com using a curl-job with two curl-containers to simulate user requests. You injected Istio sidecar injected into it to simulate traffic generation from within the cluster. The sidecar was needed in order to correctly route traffic. One of the curl-containers sets the country header field to wakanda, and the other to gondor.
- Note: You used Istio version 1.8.2 to inject the sidecar. This version of Istio corresponds to the one installed in Step 3 of the quick start tutorial. If you have a different version of Istio installed in your cluster, change the Istio version during sidecar injection appropriately.
You created an Iter8 Canary experiment with Progressive deployment pattern to evaluate the candidate. In each iteration, Iter8 observed the mean latency, 95^th percentile tail-latency, and error-rate metrics collected by Prometheus, and verified that the candidate version satisfied all the objectives specified in the experiment. It progressively increased the proportion of traffic with country: wakanda header that is routed to the candidate.

9. Cleanup¶

kubectl delete -f $ITER8/samples/knative/user-segmentation/experiment.yaml
kubectl delete -f $ITER8/samples/knative/user-segmentation/curl.yaml
kubectl delete -f $ITER8/samples/knative/user-segmentation/routing-rule.yaml
kubectl delete -f $ITER8/samples/knative/user-segmentation/services.yaml
