Session Affinity

Scenario: A/B testing with session affinity (sticky sessions)

Session affinity ensures that the version to which a particular user's request is routed remains consistent throughout the duration of the experiment. In this tutorial, you will use a FixedSplit deployment in conjunction with session affinity.

The experiment will involve two user groups, 1 and 2. Reqeusts from user group 1 will have a userhash header value prefixed with 111 and will be routed to the baseline version. Requests from user group 2 will have a userhash header value prefixed with 101 and will be routed to the candidate version.

The session affinity experiment is depicted below.

Session affinity

Before you begin...

This tutorial is available for the following K8s stacks.

KFServing

Please choose the same K8s stack consistently throughout this tutorial. If you wish to switch K8s stacks between tutorials, start from a clean K8s cluster, so that your cluster is correctly setup.

Steps 1 to 3

Please follow steps 1 through 3 of the quick start tutorial.

4. Create versions and initialize routing rule

kubectl apply -f $ITER8/samples/kfserving/quickstart/baseline.yaml
kubectl apply -f $ITER8/samples/kfserving/quickstart/candidate.yaml
kubectl apply -f $ITER8/samples/kfserving/session-affinity/routing-rule.yaml
kubectl wait --for=condition=Ready isvc/flowers -n ns-baseline
kubectl wait --for=condition=Ready isvc/flowers -n ns-candidate
Virtual service with routing rule
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: routing-rule
  namespace: default
spec:
  gateways:
  - knative-serving/knative-ingress-gateway
  hosts:
  - example.com
  http:
  - match:
    - headers:
        userhash: # user hash is a 10-digit random binary string
          prefix: "101" # in expectation, 1/8th of user hashes will match this prefix
    route: # matching users will always go to v2
    - destination:
        host: flowers-predictor-default.ns-candidate.svc.cluster.local
      headers:
        request:
          set:
            Host: flowers-predictor-default.ns-candidate
        response:
          set:
            version: flowers-v2
  - route: # non-matching users will always go to v1
    - destination:
        host: flowers-predictor-default.ns-baseline.svc.cluster.local
      headers:
        request:
          set:
            Host: flowers-predictor-default.ns-baseline
        response:
          set:
            version: flowers-v1

5. Generate requests

Generate requests to your model as follows.

INGRESS_GATEWAY_SERVICE=$(kubectl get svc -n istio-system --selector="app=istio-ingressgateway" --output jsonpath='{.items[0].metadata.name}')
kubectl port-forward -n istio-system svc/${INGRESS_GATEWAY_SERVICE} 8080:80

curl -o /tmp/input.json https://raw.githubusercontent.com/kubeflow/kfserving/master/docs/samples/v1beta1/rollout/input.json
while true; do
curl -v -H "Host: example.com" -H "userhash: 1111100000" localhost:8080/v1/models/flowers:predict -d @/tmp/input.json
sleep 0.29
done

curl -o /tmp/input.json https://raw.githubusercontent.com/kubeflow/kfserving/master/docs/samples/v1beta1/rollout/input.json
while true; do
curl -v -H "Host: example.com" -H "userhash: 1010101010" localhost:8080/v1/models/flowers:predict -d @/tmp/input.json
sleep 2.0
done

6. Define metrics

Please follow Step 6 of the quick start tutorial.

7. Launch experiment

kubectl apply -f $ITER8/samples/kfserving/session-affinity/experiment.yaml
Look inside experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: session-affinity-exp
spec:
  target: flowers
  strategy:
    testingPattern: A/B
    deploymentPattern: FixedSplit
    actions:
      # when the experiment completes, promote the winning version using kubectl apply
      finish:
      - task: common/exec
        with:
          cmd: /bin/bash
          args: [ "-c", "kubectl apply -f {{ .promote }}" ]
  criteria:
    requestCount: iter8-kfserving/request-count
    rewards: # Business rewards
    - metric: iter8-kfserving/user-engagement
      preferredDirection: High # maximize user engagement
    objectives:
    - metric: iter8-kfserving/mean-latency
      upperLimit: 2000
    - metric: iter8-kfserving/95th-percentile-tail-latency
      upperLimit: 5000
    - metric: iter8-kfserving/error-rate
      upperLimit: "0.01"
  duration:
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about model versions used in this experiment
    baseline:
      name: flowers-v1
      variables:
      - name: ns
        value: ns-baseline
      - name: promote
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/kfserving/quickstart/promote-v1.yaml
    candidates:
    - name: flowers-v2
      variables:
      - name: ns
        value: ns-candidate
      - name: promote
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/kfserving/quickstart/promote-v2.yaml

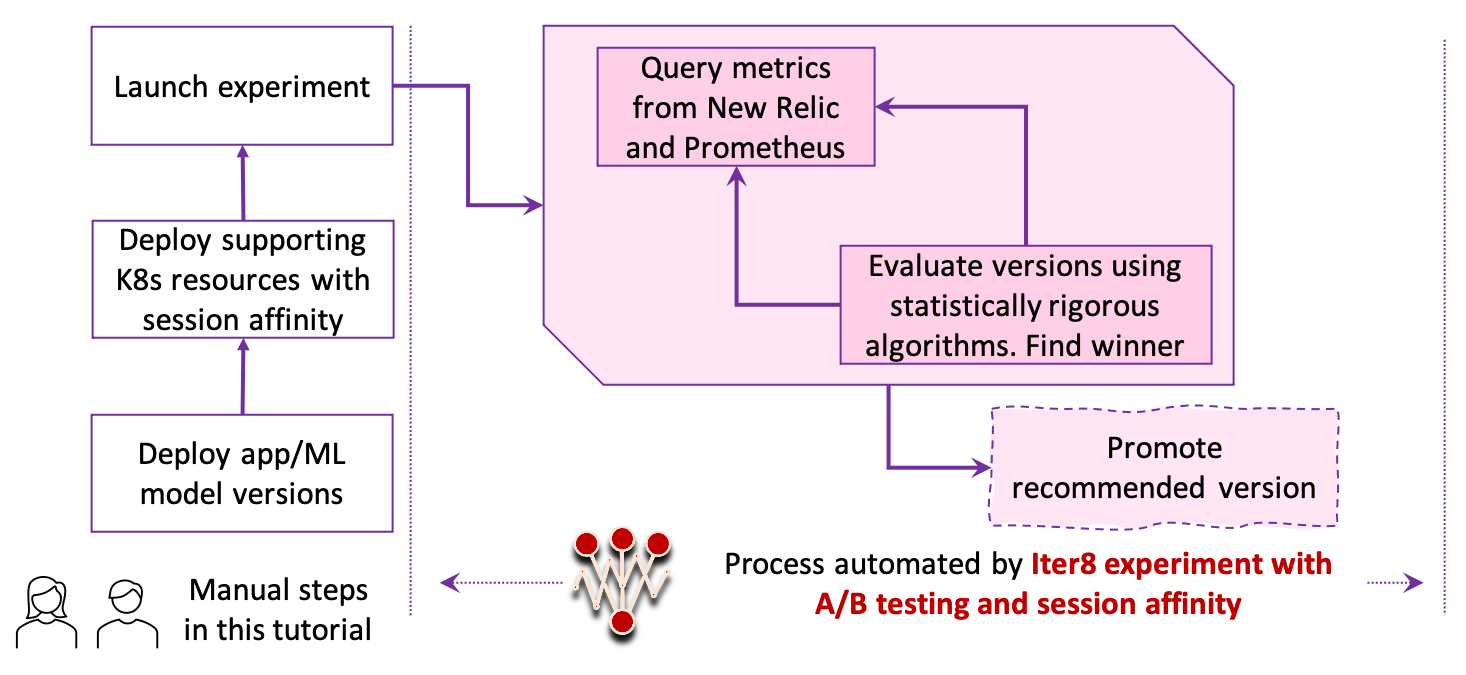

The process automated by Iter8 during this experiment is depicted below.

Iter8 automation

8. Observe experiment

Please follow Step 8 of the quick start tutorial to observe the experiment in realtime. Note that the experiment in this tutorial uses a different name from the quick start one. Replace the experiment name quickstart-exp with session-affinity-exp in your commands. You can also observe traffic by suitably modifying the commands for observing traffic.

Understanding what happened
  1. You created two versions of your app/ML model.
  2. You generated requests for your app/ML model versions. Throughout the experiment, users from Group 1 (i.e., users whose requests had a userhash header value prefixed with 111 ) were routed to the baseline version; and users from Group 2 (i.e., users whose requests had a userhash header value prefixed with 101 ) were routed to the candidate version.
  3. You created an Iter8 experiment with A/B testing pattern and FixedSplit deployment pattern. In each iteration, Iter8 observed the latency and error-rate metrics collected by Prometheus, and the user-engagement metric from New Relic; Iter8 verified that the candidate satisfied all objectives, verified that the candidate improved over the baseline in terms of user-engagement, identified candidate as the winner, and finally promoted the candidate.

9. Cleanup

kubectl delete -f $ITER8/samples/kfserving/session-affinity/experiment.yaml
kubectl delete -f $ITER8/samples/kfserving/session-affinity/routing-rule.yaml
kubectl delete -f $ITER8/samples/kfserving/quickstart/candidate.yaml
kubectl delete -f $ITER8/samples/kfserving/quickstart/baseline.yaml
