Traffic Mirroring¶

Scenario: SLO validation for a dark launched version with mirrored traffic

Traffic mirroring or shadowing enables experimenting with a dark launched version with zero-impact on end-users. Mirrored traffic is a replica of the real user requests that is routed to the dark version. Metrics are collected and evaluated for the dark version, but responses from the dark version are ignored.

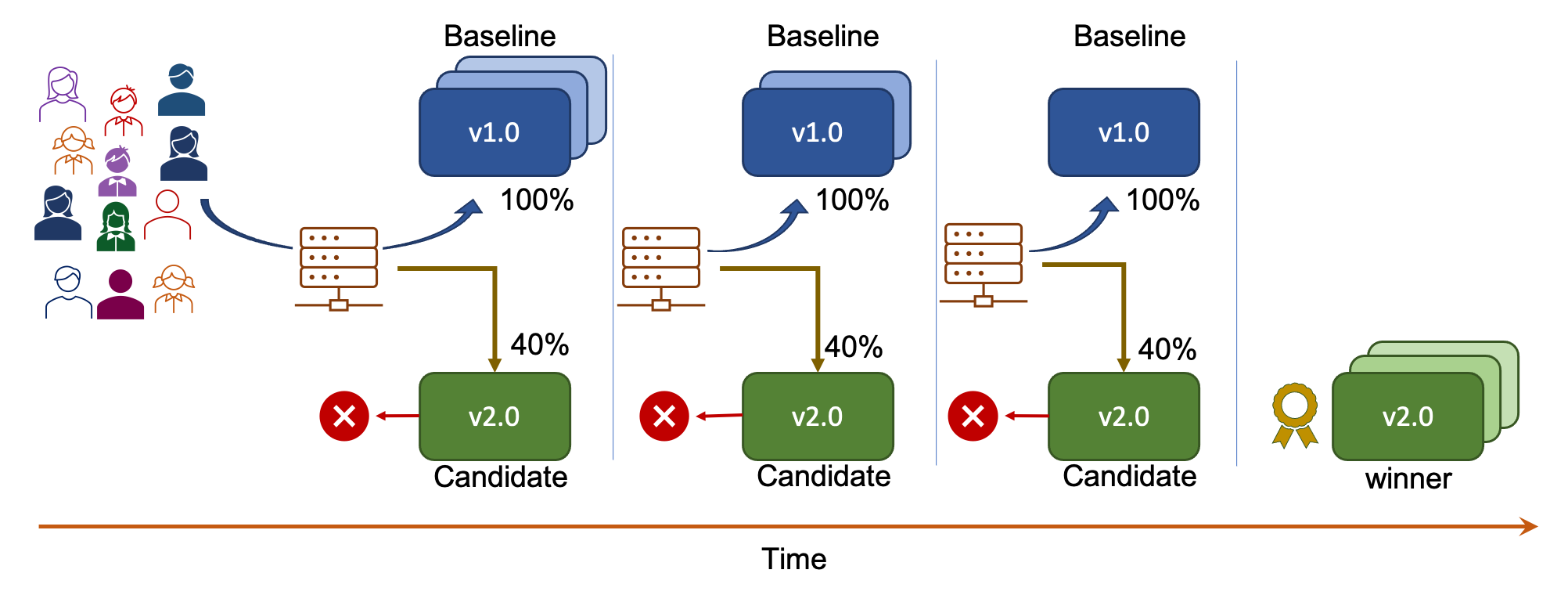

In this tutorial, you will use mirror traffic to a dark launched version as depicted below.

Mirroring

Before you begin...

This tutorial is available for the following K8s stacks.

Knative

Please choose the same K8s stack consistently throughout this tutorial. If you wish to switch K8s stacks between tutorials, start from a clean K8s cluster, so that your cluster is correctly setup.

Steps 1 to 3¶

Please follow steps 1 through 3 of the quick start tutorial.

4. Create app with live and dark versions¶

kubectl apply -f $ITER8/samples/knative/mirroring/service.yaml

Look inside service.yaml

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: sample-app
  namespace: default
spec:
  template:
    metadata:
      name: sample-app-v1
    spec:
      containers:
      - image: gcr.io/knative-samples/knative-route-demo:blue
        env:
        - name: T_VERSION
          value: "blue"
---
apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: sample-app
  namespace: default
spec:
  template:
    metadata:
      name: sample-app-v2
    spec:
      containers:
      - image: gcr.io/knative-samples/knative-route-demo:green
        env:
        - name: T_VERSION
          value: "green"
  traffic:
  - revisionName: sample-app-v1
    percent: 100
  - latestRevision: true
    percent: 0

5. Create routing rule¶

kubectl apply -f $ITER8/samples/knative/mirroring/routing-rules.yaml

Look inside routing-rules.yaml

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: example-mirroring
spec:
  gateways:
  - mesh
  - knative-serving/knative-ingress-gateway
  hosts:
  - example.com
  http:
  - rewrite:
      authority: example.com
    route:
    - destination:
        host: knative-local-gateway.istio-system.svc.cluster.local
    mirror:
      host: knative-local-gateway.istio-system.svc.cluster.local
    mirrorPercent: 40
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: example-routing
spec:
  gateways:
  - knative-serving/knative-local-gateway
  hosts:
  - "*"
  http:
  - match:
    - authority:
        prefix: example.com-shadow
    route:
    - destination:
        host: sample-app-v2.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: sample-app-v2
  - match:
    - authority:
        prefix: example.com
    route:
    - destination:
        host: sample-app-v1.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: sample-app-v1

6. Generate requests¶

TEMP_DIR=$(mktemp -d)
cd $TEMP_DIR
curl -L https://istio.io/downloadIstio | ISTIO_VERSION=1.8.2 sh -
istio-1.8.2/bin/istioctl kube-inject -f $ITER8/samples/knative/mirroring/curl.yaml | kubectl create -f -
cd $ITER8

Look inside curl.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: curl
spec:
  template:
    spec:
      activeDeadlineSeconds: 6000
      containers:
      - name: curl
        image: tutum/curl
        command:
        - /bin/sh
        - -c
        - |
          sleep 10.0
          while true; do
          curl -sS example.com
          sleep 0.5
          done
      restartPolicy: Never

7. Create Iter8 experiment¶

kubectl wait --for=condition=Ready ksvc/sample-app
kubectl apply -f $ITER8/samples/knative/mirroring/experiment.yaml

Look inside experiment.yaml

apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: mirroring
spec:
  target: default/sample-app
  strategy:
    testingPattern: Conformance
    actions:
      start:
      - task: knative/init-experiment
  criteria:
    # mean latency of version should be under 50 milliseconds
    # 95th percentile latency should be under 100 milliseconds
    # error rate should be under 1%
    objectives:
    - metric: iter8-knative/mean-latency
      upperLimit: 50
    - metric: iter8-knative/95th-percentile-tail-latency
      upperLimit: 100
    - metric: iter8-knative/error-rate
      upperLimit: "0.01"
  duration:
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about version used in this experiment
    baseline:
      name: current
      variables:
      - name: revision
        value: sample-app-v2

8. Observe experiment¶

Please follow Step 8 of the quick start tutorial to observe the experiment in realtime. Note that the experiment in this tutorial uses a different name from the quick start one. Replace the experiment name quickstart-exp with mirroring in your commands. You can also observe traffic by suitably modifying the commands for observing traffic.

Understanding what happened

You configured a Knative service with two versions of your app. In the service.yaml manifest, you specified that the live version, sample-app-v1, should receive 100% of the production traffic and the dark version, sample-app-v2, should receive 0% of the production traffic.
You used example.com as the HTTP host in this tutorial.
- Note: In your production cluster, use domain(s) that you own in the setup of the virtual services.
You set up Istio virtual services which mapped the Knative revisions to the custom domain. The virtual services specified the following routing rules: all HTTP requests with their Host header or :authority pseudo-header set to example.com would be sent to sample-app-v1. 40% of these requests would be mirrored and sent to sample-app-v2 and responses from sample-app-v2 would be ignored.
You generated traffic for example.com using a curl-based job. You injected Istio sidecar injected into it to simulate traffic generation from within the cluster. The sidecar was needed in order to correctly route traffic.
- Note: You used Istio version 1.8.2 to inject the sidecar. This version of Istio corresponds to the one installed in Step 3 of the quick start tutorial. If you have a different version of Istio installed in your cluster, change the Istio version during sidecar injection appropriately.
You created an Iter8 Conformance experiment to evaluate the dark version. In each iteration, Iter8 observed the mean latency, 95^th percentile tail-latency, and error-rate metrics for the dark version collected by Prometheus, and verified that the dark version satisfied all the objectives specified in experiment.yaml.

9. Cleanup¶

kubectl delete -f $ITER8/samples/knative/mirroring/curl.yaml
kubectl delete -f $ITER8/samples/knative/mirroring/experiment.yaml
kubectl delete -f $ITER8/samples/knative/mirroring/routing-rules.yaml
kubectl delete -f $ITER8/samples/knative/mirroring/service.yaml
