Conformance Testing¶

Scenario: Conformance testing

Conformance testing enables you to validate a version of your app/ML model using service-level objectives (SLOs). In this tutorial, you will:

Perform conformance testing.
Specify latency and error-rate based service-level objectives (SLOs). If your version satisfies SLOs, Iter8 will declare it as the winner.

Conformance

Before you begin...

This tutorial is available for the following K8s stacks.

Istio Knative

Please choose the same K8s stack consistently throughout this tutorial. If you wish to switch K8s stacks between tutorials, start from a clean K8s cluster, so that your cluster is correctly setup.

Steps 1, 2, and 3¶

Please follow steps 1, 2, and 3 of the quick start tutorial.

4. Create app/ML model version¶

Istio

Deploy bookinfo app:

kubectl apply -n bookinfo-iter8 -f $ITER8/samples/istio/conformance/bookinfo-app.yaml

Look inside productpage-v1 defined in bookinfo-app.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: productpage-v1
  labels:
    app: productpage
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: productpage
      version: v1
  template:
    metadata:
      annotations:
        sidecar.istio.io/inject: "true"
        prometheus.io/scrape: "true"
        prometheus.io/path: /metrics
        prometheus.io/port: "9080"
      labels:
        app: productpage
        version: v1
    spec:
      serviceAccountName: bookinfo-productpage
      containers:
      - name: productpage
        image: iter8/productpage:demo
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9080
        env:
          - name: deployment
            value: "productpage-v1"
          - name: namespace
            valueFrom:
              fieldRef:
                fieldPath: metadata.namespace
          - name: color
            value: "red"
          - name: reward_min
            value: "0"
          - name: reward_max
            value: "5"
          - name: port
            value: "9080"

Knative

Deploy a Knative app.

kubectl apply -f $ITER8/samples/knative/conformance/baseline.yaml

Look inside baseline.yaml

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
name: sample-app
namespace: default
spec:
template:
    metadata:
    name: sample-app-v1
    spec:
    containers:
    - image: gcr.io/knative-samples/knative-route-demo:blue
        env:
        - name: T_VERSION
        value: "blue"

5. Generate requests¶

Istio

Generate requests using Fortio as follows.

kubectl wait -n bookinfo-iter8 --for=condition=Ready pods --all
# URL_VALUE is the URL of the `bookinfo` application
URL_VALUE="http://$(kubectl -n istio-system get svc istio-ingressgateway -o jsonpath='{.spec.clusterIP}'):80/productpage"
sed "s+URL_VALUE+${URL_VALUE}+g" $ITER8/samples/istio/quickstart/fortio.yaml | kubectl apply -f -

Look inside fortio.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: fortio
spec:
  template:
    spec:
      volumes:
      - name: shared
        emptyDir: {}
      containers:
      - name: fortio
        image: fortio/fortio
        command: [ 'fortio', 'load', '-t', '6000s', '-qps', "16", '-json', '/shared/fortiooutput.json', '-H', 'Host: bookinfo.example.com', "$(URL)" ]
        env:
        - name: URL
          value: URL_VALUE
        volumeMounts:
        - name: shared
          mountPath: /shared
      - name: busybox
        image: busybox:1.28
        command: ['sh', '-c', 'echo busybox is running! && sleep 6000']
        volumeMounts:
        - name: shared
          mountPath: /shared
      restartPolicy: Never

Knative

Generation of requests is handled automatically by the Iter8 experiment.

6. Define metrics¶

Istio

Please follow step 6 of the quick start tutorial.

Knative

Metrics collection is handled automatically by the Iter8 experiment.

7. Launch experiment¶

Launch the Iter8 experiment that orchestrates conformance testing for the app/ML model in this tutorial.

Istio

kubectl apply -f $ITER8/samples/istio/conformance/experiment.yaml

Look inside experiment.yaml

apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: conformance-exp
spec:
  # target identifies the service under experimentation using its fully qualified name
  target: bookinfo-iter8/productpage
  strategy:
    # this experiment will perform a Conformance test
    testingPattern: Conformance
  criteria:
    objectives: # used for validating versions
    - metric: iter8-istio/mean-latency
      upperLimit: 100
    - metric: iter8-istio/error-rate
      upperLimit: "0.01"
    requestCount: iter8-istio/request-count
  duration: # product of fields determines length of the experiment
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about the app versions used in this experiment
    baseline:
      name: productpage-v1
      variables:
      - name: namespace # used by final action if this version is the winner
        value: bookinfo-iter8

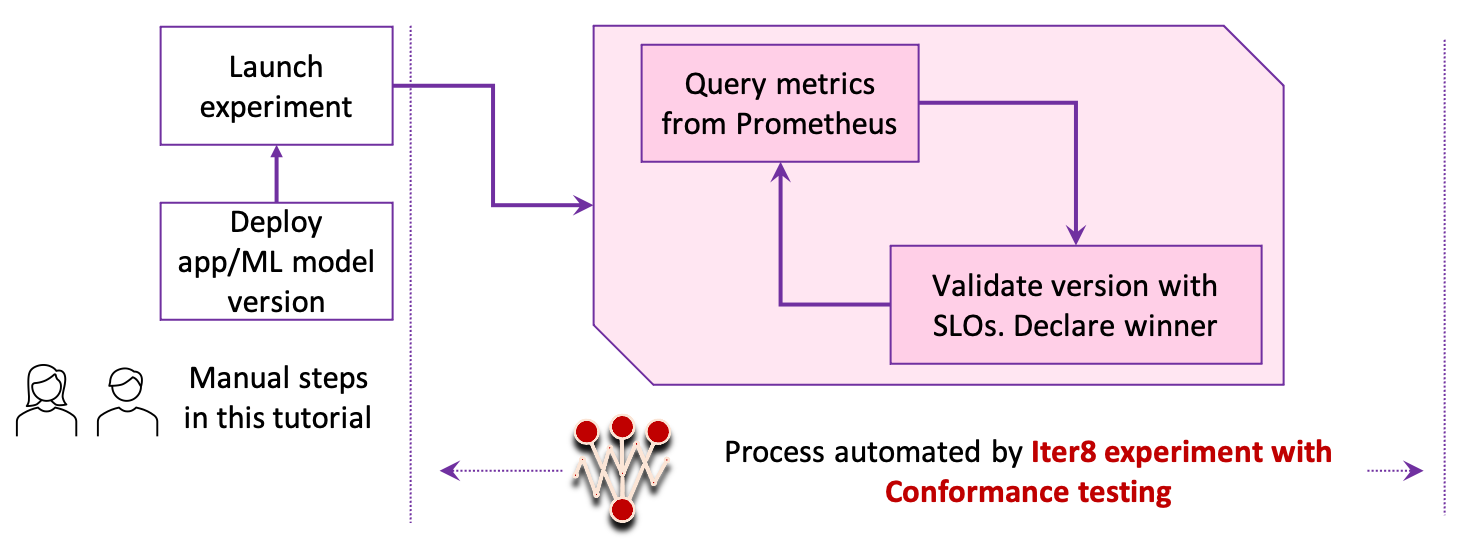

The process automated by Iter8 during this experiment is depicted below.

Iter8 automation

Knative

kubectl apply -f $ITER8/samples/knative/conformance/experiment.yaml

Look inside experiment.yaml

apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: conformance-exp
spec:
  # target identifies the knative service under experimentation using its fully qualified name
  target: default/sample-app
  strategy:
    # this experiment will perform a conformance test
    testingPattern: Conformance
    actions:
      loop:
      - task: metrics/collect
        with:
          versions:
          - name: sample-app-v1
            url: http://sample-app.default.svc.cluster.local
  criteria:
    objectives:
    - metric: iter8-system/mean-latency
      upperLimit: 50
    - metric: iter8-system/error-count
      upperLimit: 0
  duration:
    maxLoops: 10
    intervalSeconds: 1
    iterationsPerLoop: 1
  versionInfo:
    # information about app versions used in this experiment
    baseline:
      name: sample-app-v1

The process automated by Iter8 during this experiment is depicted below.

Iter8 automation

8. Observe experiment¶

Follow step 8 of quick start tutorial to observe the experiment in realtime. Note that the experiment in this tutorial uses a different name from the quick start one. Replace the experiment name quickstart-exp with conformance-exp in your commands.

Understanding what happened

You created a single version of an app/ML model.
You generated requests for your app/ML model versions.
You created an Iter8 experiment with conformance testing pattern. In each iteration, Iter8 observed the latency and error-rate metrics for your application; Iter8 verified that the version (referred to as baseline in a conformance experiment) satisfied all the SLOs, and identified baseline as the winner.

9. Cleanup¶

Istio

kubectl delete -f $ITER8/samples/istio/conformance/fortio.yaml
kubectl delete -f $ITER8/samples/istio/conformance/experiment.yaml
kubectl delete ns bookinfo-iter8

Knative

kubectl delete -f $ITER8/samples/knative/conformance/experiment.yaml
kubectl delete -f $ITER8/samples/knative/conformance/baseline.yaml
