Canary Testing

Scenario: Canary testing

Canary testing enables you to safely rollout a new version of your app/ML model after validating service-level objectives (SLOs). In this tutorial, you will:

  1. Perform canary testing.
  2. Specify latency and error-rate based service-level objectives (SLOs). If the candidate version satisfies SLOs, Iter8 will declare it as the winner.
  3. Use Prometheus as the provider for latency and error-rate metrics.
  4. Combine canary testing with progressive deployment.

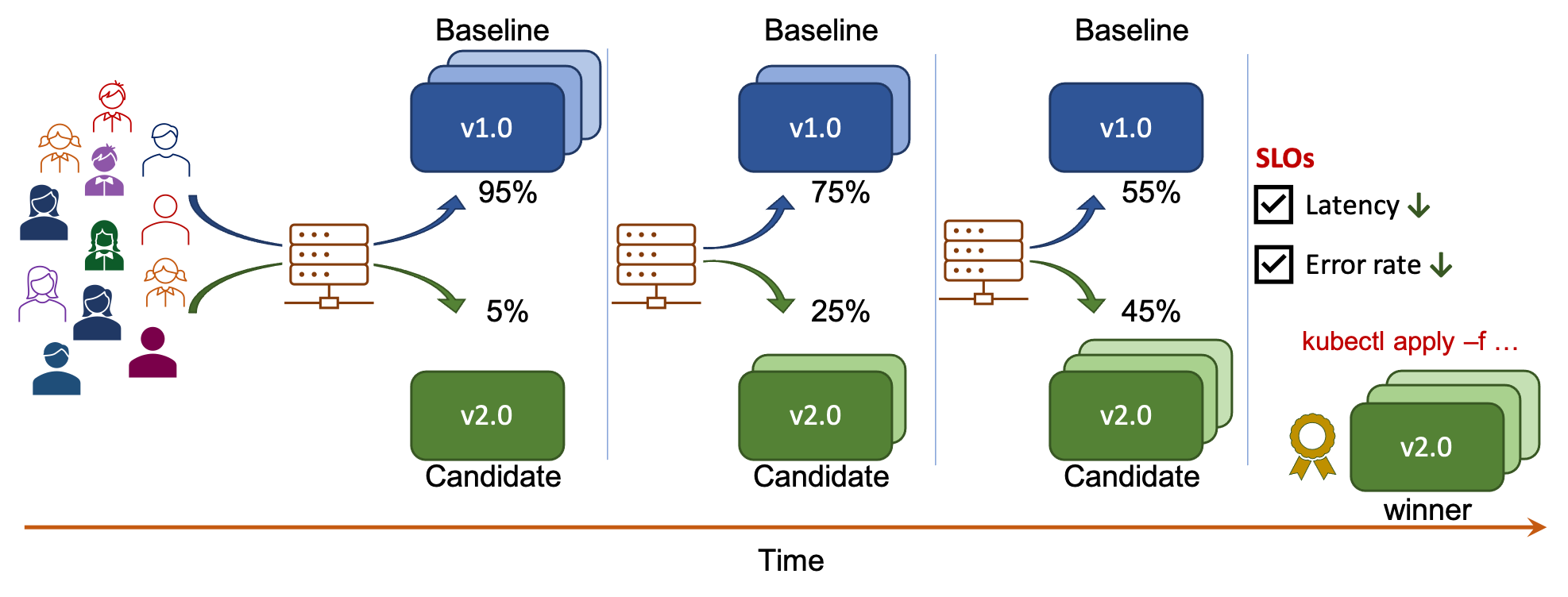

Iter8 will progressively shift the traffic towards the winner and promote it at the end as depicted below.

Canary

Before you begin...

This tutorial is available for the following K8s stacks.

Istio Knative

Please choose the same K8s stack consistently throughout this tutorial. If you wish to switch K8s stacks between tutorials, start from a clean K8s cluster, so that your cluster is correctly setup.

Steps 1 to 6

Please follow steps 1 through 6 of the quick start tutorial.

7. Launch experiment

Launch the Iter8 experiment that orchestrates canary testing for the app in this tutorial.

kubectl apply -f $ITER8/samples/istio/canary/experiment.yaml
Look inside experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: canary-exp
spec:
  # target identifies the service under experimentation using its fully qualified name
  target: bookinfo-iter8/productpage
  strategy:
    # this experiment will perform a Canary test
    testingPattern: Canary
    # this experiment will progressively shift traffic to the winning version
    deploymentPattern: Progressive
    actions:
      # when the experiment completes, promote the winning version using kubectl apply
      finish:
      - task: common/exec
        with:
          cmd: /bin/bash
          args: [ "-c", "kubectl -n bookinfo-iter8 apply -f {{ .promote }}" ]
  criteria:
    objectives: # metrics used to validate versions
    - metric: iter8-istio/mean-latency
      upperLimit: 100
    - metric: iter8-istio/error-rate
      upperLimit: "0.01"
    requestCount: iter8-istio/request-count
  duration: # product of fields determines length of the experiment
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about the app versions used in this experiment
    baseline:
      name: productpage-v1
      variables:
      - name: namespace # used in metric queries
        value: bookinfo-iter8
      - name: promote # used by final action if this version is the winner
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/istio/quickstart/vs-for-v1.yaml
      weightObjRef:
        apiVersion: networking.istio.io/v1beta1
        kind: VirtualService
        namespace: bookinfo-iter8
        name: bookinfo
        fieldPath: .spec.http[0].route[0].weight
    candidates:
    - name: productpage-v2
      variables:
      - name: namespace # used in metric queries
        value: bookinfo-iter8
      - name: promote # used by final action if this version is the winner
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/istio/quickstart/vs-for-v2.yaml
      weightObjRef:
        apiVersion: networking.istio.io/v1beta1
        kind: VirtualService
        namespace: bookinfo-iter8
        name: bookinfo
        fieldPath: .spec.http[0].route[1].weight

kubectl apply -f $ITER8/samples/knative/canary/experiment.yaml
Look inside experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: canary-exp
spec:
  target: default/sample-app
  strategy:
    testingPattern: Canary
    deploymentPattern: Progressive
    actions:
      finish: # run the following sequence of tasks at the end of the experiment
      - task: common/exec # promote the winning version
        with:
          cmd: /bin/sh
          args:
          - "-c"
          - |
            kubectl apply -f https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/knative/quickstart/{{ .promote }}.yaml
  criteria:
    requestCount: iter8-knative/request-count
    objectives:
    - metric: iter8-knative/mean-latency
      upperLimit: 50
    - metric: iter8-knative/95th-percentile-tail-latency
      upperLimit: 100
    - metric: iter8-knative/error-rate
      upperLimit: "0.01"
  duration:
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about app versions used in this experiment
    baseline:
      name: sample-app-v1
      weightObjRef:
        apiVersion: serving.knative.dev/v1
        kind: Service
        name: sample-app
        namespace: default
        fieldPath: .spec.traffic[0].percent
      variables:
      - name: promote
        value: baseline
    candidates:
    - name: sample-app-v2
      weightObjRef:
        apiVersion: serving.knative.dev/v1
        kind: Service
        name: sample-app
        namespace: default
        fieldPath: .spec.traffic[1].percent
      variables:
      - name: promote
        value: candidate

The process automated by Iter8 during this experiment is depicted below.

Iter8 automation

8. Observe experiment

Follow step 8 of quick start tutorial to observe the experiment in realtime. Note that the experiment in this tutorial uses a different name from the quick start one. Replace the experiment name quickstart-exp with canary-exp in your commands. You can also observe traffic by suitably modifying the commands for observing traffic.

Understanding what happened
  1. You created two versions of your app/ML model.
  2. You generated requests for your app/ML model versions. At the start of the experiment, 100% of the requests are sent to the baseline and 0% to the candidate.
  3. You created an Iter8 experiment with canary testing pattern and progressive deployment pattern. In each iteration, Iter8 observed the latency and error-rate metrics collected by Prometheus; Iter8 verified that the candidate satisfied all the SLOs, identified candidate as the winner, progressively shifted traffic from the baseline to the candidate, and promoted the candidate.

9. Cleanup

kubectl delete -f $ITER8/samples/istio/quickstart/fortio.yaml
kubectl delete -f $ITER8/samples/istio/canary/experiment.yaml
kubectl delete namespace bookinfo-iter8

kubectl delete -f $ITER8/samples/knative/quickstart/fortio.yaml
kubectl delete -f $ITER8/samples/knative/canary/experiment.yaml
kubectl delete -f $ITER8/samples/knative/quickstart/experimentalservice.yaml
