Fixed Split Deployment

Scenario: FixedSplit deployment

FixedSplit deployment, as the name indicates, is meant for scenarios where you do not want Iter8 to shift traffic between versions during the experiment. In this tutorial, you will:

The modified A/B testing experiment with FixedSplit deployment pattern is depicted below.

Canary

Before you begin...

This tutorial is available for the following K8s stacks.

Istio KFServing Knative

Please choose the same K8s stack consistently throughout this tutorial. If you wish to switch K8s stacks between tutorials, start from a clean K8s cluster, so that your cluster is correctly setup.

Steps 1 to 3

Please follow steps 1 through 3 of the quick start tutorial.

4. Create versions and initialize traffic split

kubectl apply -n bookinfo-iter8 -f $ITER8/samples/istio/fixed-split/bookinfo-app.yaml
kubectl apply -n bookinfo-iter8 -f $ITER8/samples/istio/quickstart/productpage-v2.yaml
kubectl wait -n bookinfo-iter8 --for=condition=Ready pods --all
Virtual service with traffic split
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: bookinfo
spec:
  gateways:
  - mesh
  - bookinfo-gateway
  hosts:
  - productpage
  - "bookinfo.example.com"
  http:
  - match:
    - uri:
        exact: /productpage
    - uri:
        prefix: /static
    - uri:
        exact: /login
    - uri:
        exact: /logout
    - uri:
        prefix: /api/v1/products
    route:
    - destination:
        host: productpage
        port:
          number: 9080
        subset: productpage-v1
      weight: 60
    - destination:
        host: productpage
        port:
          number: 9080
        subset: productpage-v2
      weight: 40

kubectl apply -f $ITER8/samples/kfserving/quickstart/baseline.yaml
kubectl apply -f $ITER8/samples/kfserving/quickstart/candidate.yaml
kubectl apply -f $ITER8/samples/kfserving/fixed-split/routing-rule.yaml
kubectl wait --for=condition=Ready isvc/flowers -n ns-baseline
kubectl wait --for=condition=Ready isvc/flowers -n ns-candidate
Virtual service with traffic split
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: routing-rule
  namespace: default
spec:
  gateways:
  - knative-serving/knative-ingress-gateway
  hosts:
  - example.com
  http:
  - route:
    - destination:
        host: flowers-predictor-default.ns-baseline.svc.cluster.local
      headers:
        request:
          set:
            Host: flowers-predictor-default.ns-baseline
        response:
          set:
            version: flowers-v1
      weight: 60
    - destination:
        host: flowers-predictor-default.ns-candidate.svc.cluster.local
      headers:
        request:
          set:
            Host: flowers-predictor-default.ns-candidate
        response:
          set:
            version: flowers-v2
      weight: 40

kubectl apply -f $ITER8/samples/knative/quickstart/baseline.yaml
kubectl apply -f $ITER8/samples/knative/fixed-split/experimentalservice.yaml
kubectl wait --for=condition=Ready ksvc/sample-app
Knative service with traffic split
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: sample-app
  namespace: default
spec:
  template:
    metadata:
      name: sample-app-v2
    spec:
      containers:
      - image: gcr.io/knative-samples/knative-route-demo:green
        env:
        - name: T_VERSION
          value: "green"
  traffic:
  - tag: current
    revisionName: sample-app-v1
    percent: 60
  - tag: candidate
    latestRevision: true
    percent: 40

5. Generate requests

Please follow Step 5 of the quick start tutorial.

6. Define metrics

Please follow Step 6 of the quick start tutorial.

7. Launch experiment

kubectl apply -f $ITER8/samples/istio/fixed-split/experiment.yaml
Look inside experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: fixedsplit-exp
spec:
  # target identifies the service under experimentation using its fully qualified name
  target: bookinfo-iter8/productpage
  strategy:
    # this experiment will perform an A/B test
    testingPattern: A/B
    # this experiment will not shift traffic during iterations
    deploymentPattern: FixedSplit
    actions:
      # when the experiment completes, promote the winning version using kubectl apply
      finish:
      - task: common/exec
        with:
          cmd: /bin/bash
          args: [ "-c", "kubectl -n bookinfo-iter8 apply -f {{ .promote }}" ]
  criteria:
    rewards:
    # (business) reward metric to optimize in this experiment
    - metric: iter8-istio/user-engagement
      preferredDirection: High
    objectives: # used for validating versions
    - metric: iter8-istio/mean-latency
      upperLimit: 300
    - metric: iter8-istio/error-rate
      upperLimit: "0.01"
    requestCount: iter8-istio/request-count
  duration: # product of fields determines length of the experiment
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about the app versions used in this experiment
    baseline:
      name: productpage-v1
      variables:
      - name: namespace # used by final action if this version is the winner
        value: bookinfo-iter8
      - name: promote # used by final action if this version is the winner
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/istio/quickstart/vs-for-v1.yaml
    candidates:
    - name: productpage-v2
      variables:
      - name: namespace # used by final action if this version is the winner
        value: bookinfo-iter8
      - name: promote # used by final action if this version is the winner
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/istio/quickstart/vs-for-v2.yaml

kubectl apply -f $ITER8/samples/kfserving/fixed-split/experiment.yaml
Look inside experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: fixedsplit-exp
spec:
  target: flowers
  strategy:
    testingPattern: A/B
    deploymentPattern: FixedSplit
    actions:
      # when the experiment completes, promote the winning version using kubectl apply
      finish:
      - task: common/exec
        with:
          cmd: /bin/bash
          args: [ "-c", "kubectl apply -f {{ .promote }}" ]
  criteria:
    requestCount: iter8-kfserving/request-count
    rewards: # Business rewards
    - metric: iter8-kfserving/user-engagement
      preferredDirection: High # maximize user engagement
    objectives:
    - metric: iter8-kfserving/mean-latency
      upperLimit: 1500
    - metric: iter8-kfserving/95th-percentile-tail-latency
      upperLimit: 2000
    - metric: iter8-kfserving/error-rate
      upperLimit: "0.01"
  duration:
    intervalSeconds: 10
    iterationsPerLoop: 25
  versionInfo:
    # information about model versions used in this experiment
    baseline:
      name: flowers-v1
      variables:
      - name: ns
        value: ns-baseline
      - name: promote
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/kfserving/quickstart/promote-v1.yaml
    candidates:
    - name: flowers-v2
      variables:
      - name: ns
        value: ns-candidate
      - name: promote
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/kfserving/quickstart/promote-v2.yaml

kubectl apply -f $ITER8/samples/knative/fixed-split/experiment.yaml
Look inside experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: fixedsplit-exp
spec:
  # target identifies the knative service under experimentation using its fully qualified name
  target: default/sample-app
  strategy:
    testingPattern: A/B
    deploymentPattern: FixedSplit
    actions:
      finish: # run the following sequence of tasks at the end of the experiment
      - task: common/exec # promote the winning version
        with:
          cmd: /bin/sh
          args:
          - "-c"
          - |
            kubectl apply -f https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/knative/quickstart/{{ .promote }}.yaml
  criteria:
    requestCount: iter8-knative/request-count
    rewards: # Business rewards
    - metric: iter8-knative/user-engagement
      preferredDirection: High # maximize user engagement
    objectives:
    - metric: iter8-knative/mean-latency
      upperLimit: 50
    - metric: iter8-knative/95th-percentile-tail-latency
      upperLimit: 100
    - metric: iter8-knative/error-rate
      upperLimit: "0.01"
  duration:
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about app versions used in this experiment
    baseline:
      name: sample-app-v1
      variables:
      - name: promote
        value: baseline
    candidates:
    - name: sample-app-v2
      variables:
      - name: promote
        value: candidate

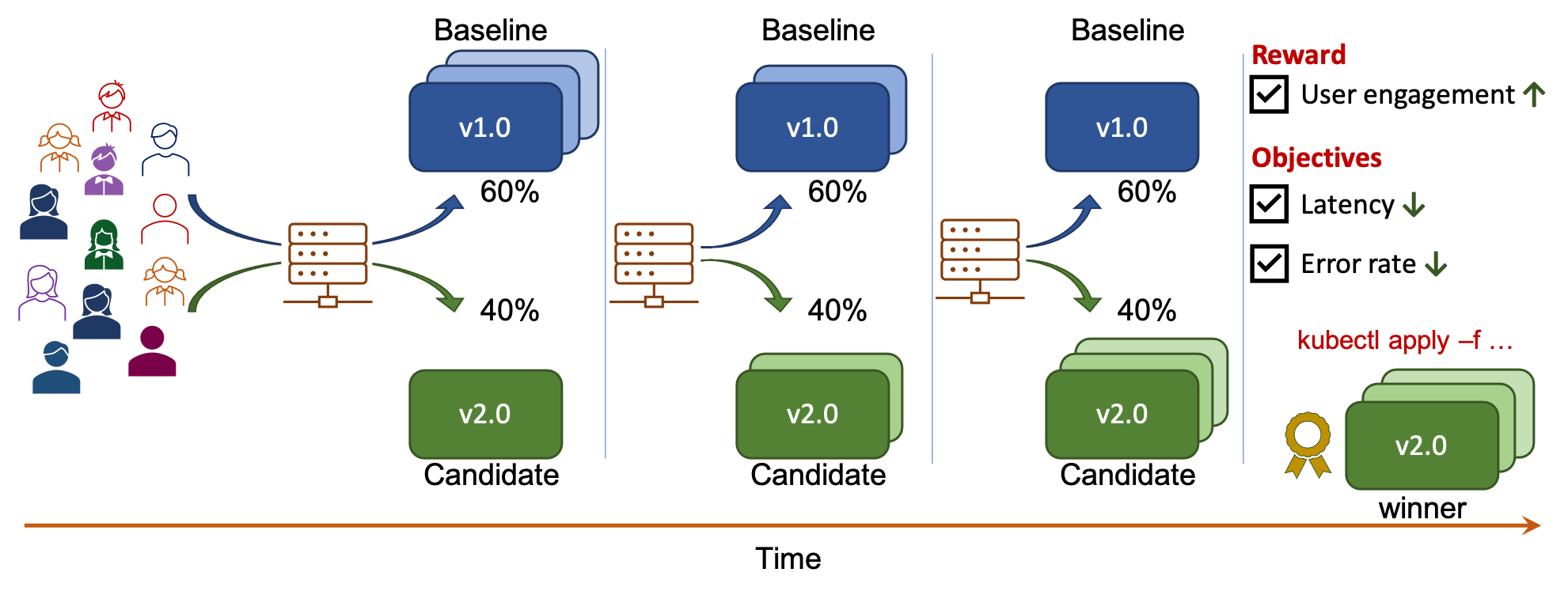

The process automated by Iter8 during this experiment is depicted below.

Iter8 automation

8. Observe experiment

Please follow Step 8 of the quick start tutorial to observe the experiment in realtime. Note that the experiment in this tutorial uses a different name from the quick start one. Replace the experiment name quickstart-exp with fixedsplit-exp in your commands. You can also observe traffic by suitably modifying the commands for observing traffic.

Understanding what happened
  1. You created two versions of your app/ML model.
  2. You generated requests for your app/ML model versions. At the start of the experiment, 60% of the requests are sent to the baseline and 40% to the candidate.
  3. You created an Iter8 experiment with A/B testing pattern and FixedSplit deployment pattern. In each iteration, Iter8 observed the latency and error-rate metrics collected by Prometheus, and the user-engagement metric from New Relic; Iter8 verified that the candidate satisfied all objectives, verified that the candidate improved over the baseline in terms of user-engagement, identified candidate as the winner, and finally promoted the candidate.

9. Cleanup

kubectl delete -f $ITER8/samples/istio/fixed-split/experiment.yaml
kubectl delete -f $ITER8/samples/istio/quickstart/fortio.yaml
kubectl delete ns bookinfo-iter8

kubectl delete -f $ITER8/samples/kfserving/fixed-split/experiment.yaml
kubectl delete -f $ITER8/samples/kfserving/fixed-split/routing-rule.yaml
kubectl delete -f $ITER8/samples/kfserving/quickstart/candidate.yaml
kubectl delete -f $ITER8/samples/kfserving/quickstart/baseline.yaml

kubectl delete -f $ITER8/samples/knative/fixed-split/experiment.yaml
kubectl delete -f $ITER8/samples/knative/quickstart/fortio.yaml
kubectl apply -f $ITER8/samples/knative/fixed-split/experimentalservice.yaml
