Quick Start

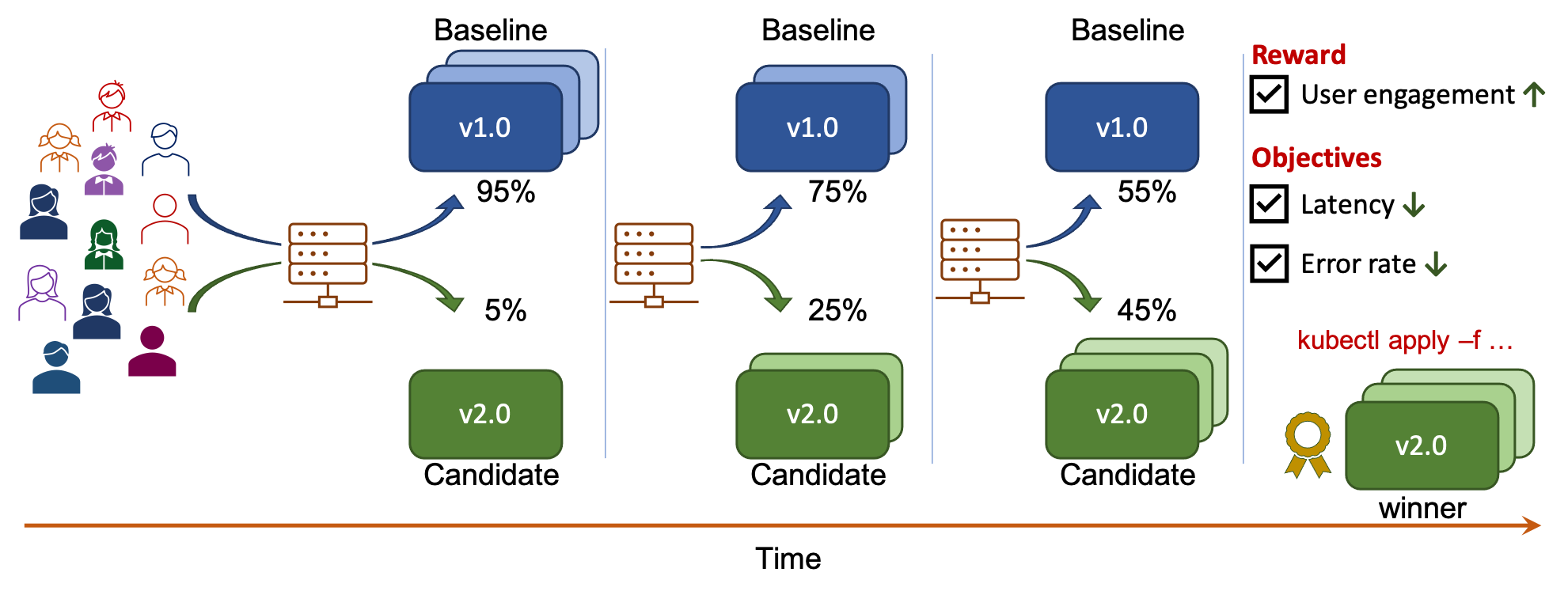

Scenario: A/B testing

A/B testing enables you to compare two versions of an app/ML model, and select a winner based on a (business) reward metric and objectives (SLOs). In this tutorial, you will:

  1. Perform A/B testing.
  2. Specify user-engagement as the reward metric, and latency and error-rate based objectives. Iter8 will find a winner by comparing the two versions in terms of the reward, and by validating versions in terms of the objectives.
  3. Use New Relic as the provider for user-engagement metric, and Prometheus as the provider for latency and error-rate metrics.
  4. Combine A/B testing with progressive deployment.

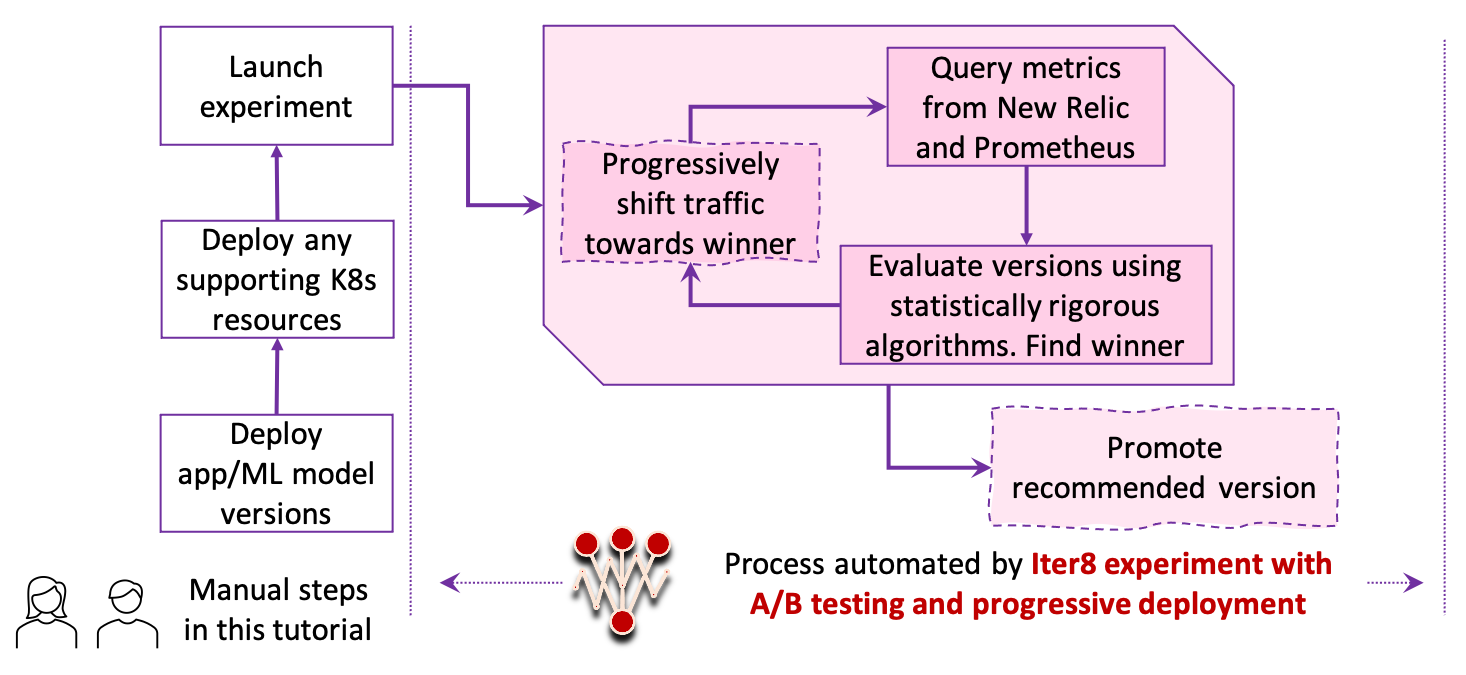

Iter8 will progressively shift the traffic towards the winner and promote it at the end as depicted below.

Canary

Before you begin, you will need...
  1. The kubectl CLI.
  2. Kustomize 3+.
  3. Go 1.13+.
  4. (Seldon Only) Helm 3+

This tutorial is available for the following K8s stacks.

Istio KFServing Knative Seldon

Please choose the same K8s stack consistently throughout this tutorial. If you wish to switch K8s stacks between tutorials, start from a clean K8s cluster, so that your cluster is correctly setup.

1. Create Kubernetes cluster

Create a local cluster using Kind or Minikube as follows, or use a managed Kubernetes cluster. Ensure that the cluster has sufficient resources, for example, 8 CPUs and 12GB of memory.

kind create cluster --wait 5m
kubectl cluster-info --context kind-kind

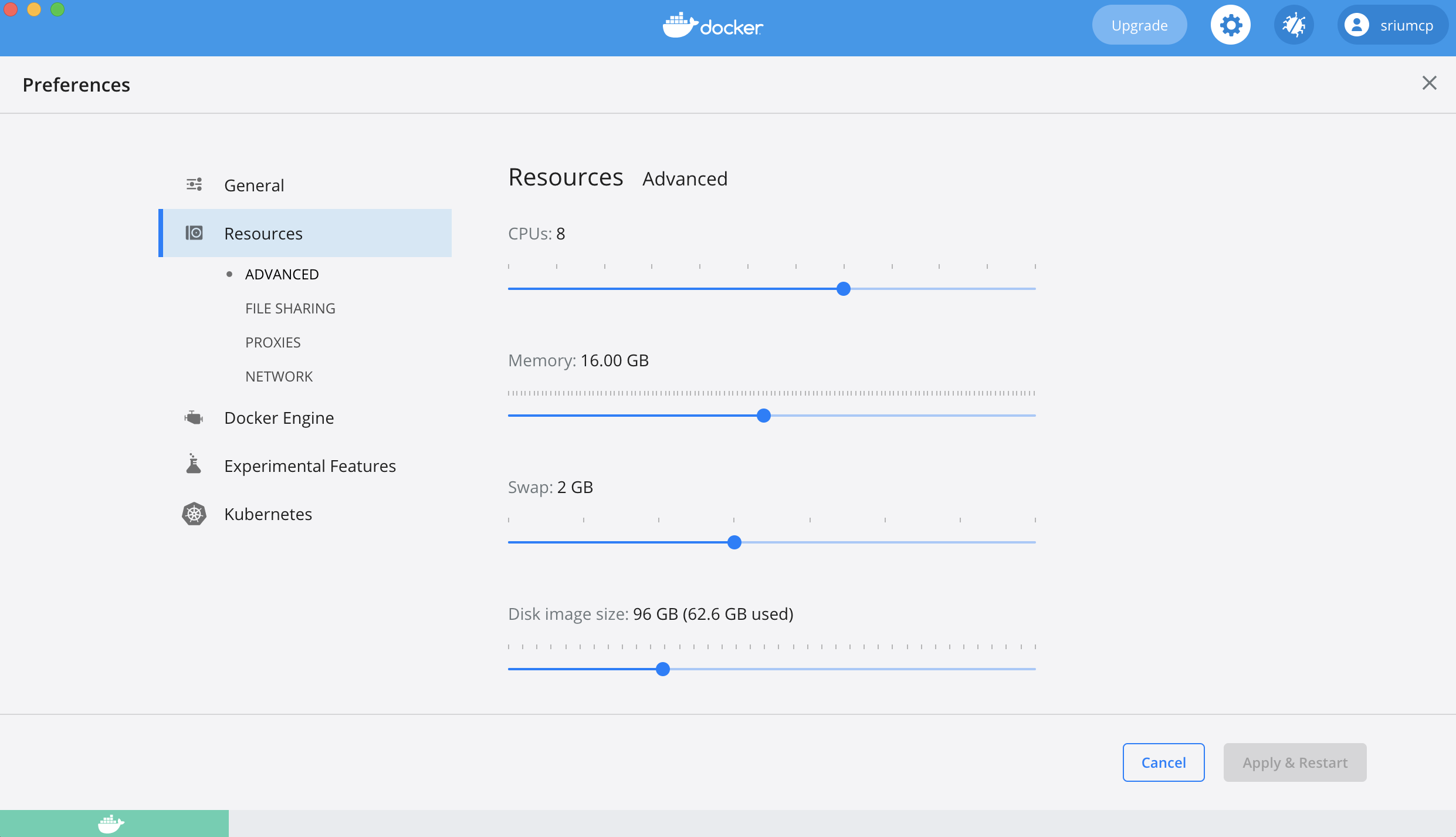

Ensuring your Kind cluster has sufficient resources

Your Kind cluster inherits the CPU and memory resources of its host. If you are using Docker Desktop, you can set its resources as shown below.

Resources

minikube start --cpus 8 --memory 12288

2. Clone Iter8 repo

git clone https://github.com/iter8-tools/iter8.git
cd iter8
export ITER8=$(pwd)

3. Install K8s stack and Iter8

Choose the K8s stack over which you are performing the A/B testing experiment.

Setup Istio, Iter8, a mock New Relic service, and Prometheus add-on within your cluster.

$ITER8/samples/istio/quickstart/platformsetup.sh

Setup KFServing, Iter8, a mock New Relic service, and Prometheus add-on within your cluster.

$ITER8/samples/kfserving/quickstart/platformsetup.sh

Setup Knative, Iter8, a mock New Relic service, and Prometheus add-on within your cluster. Knative can work with multiple networking layers. So can Iter8's Knative extension.

Choose the networking layer for Knative.

$ITER8/samples/knative/quickstart/platformsetup.sh contour

$ITER8/samples/knative/quickstart/platformsetup.sh kourier

This step requires Python. This will install glooctl binary under $HOME/.gloo folder.

$ITER8/samples/knative/quickstart/platformsetup.sh gloo


$ITER8/samples/knative/quickstart/platformsetup.sh istio

Setup Seldon Core, Seldon Analytics and Iter8 within your cluster.

$ITER8/samples/seldon/quickstart/platformsetup.sh

4. Create app/ML model versions

Deploy the bookinfo microservice application including two versions of the productpage microservice.

kubectl apply -n bookinfo-iter8 -f $ITER8/samples/istio/quickstart/bookinfo-app.yaml
kubectl apply -n bookinfo-iter8 -f $ITER8/samples/istio/quickstart/productpage-v2.yaml
kubectl wait -n bookinfo-iter8 --for=condition=Ready pods --all
Look inside productpage-v2.yaml (v1 is similar)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
apiVersion: apps/v1
kind: Deployment
metadata:
  name: productpage-v2
  labels:
    app: productpage
    version: v2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: productpage
      version: v2
  template:
    metadata:
      annotations:
        sidecar.istio.io/inject: "true"
      labels:
        app: productpage
        version: v2
    spec:
      serviceAccountName: bookinfo-productpage
      containers:
      - name: productpage
        image: iter8/productpage:demo
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9080
        env:
          - name: deployment
            value: "productpage-v2"
          - name: namespace
            valueFrom:
              fieldRef:
                fieldPath: metadata.namespace
          - name: color
            value: "green"
          - name: reward_min
            value: "10"
          - name: reward_max
            value: "20"
          - name: port
            value: "9080"

Deploy two KFServing inference services corresponding to two versions of a TensorFlow classification model, along with an Istio virtual service to split traffic between them.

kubectl apply -f $ITER8/samples/kfserving/quickstart/baseline.yaml
kubectl apply -f $ITER8/samples/kfserving/quickstart/candidate.yaml
kubectl apply -f $ITER8/samples/kfserving/quickstart/routing-rule.yaml
kubectl wait --for=condition=Ready isvc/flowers -n ns-baseline
kubectl wait --for=condition=Ready isvc/flowers -n ns-candidate
Look inside baseline.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
apiVersion: v1
kind: Namespace
metadata:
  name: ns-baseline
---
apiVersion: serving.kubeflow.org/v1beta1
kind: InferenceService
metadata:
  name: flowers
  namespace: ns-baseline
spec:
  predictor:
    tensorflow:
      storageUri: "gs://kfserving-samples/models/tensorflow/flowers"
Look inside candidate.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
apiVersion: v1
kind: Namespace
metadata:
  name: ns-candidate
---
apiVersion: serving.kubeflow.org/v1beta1
kind: InferenceService
metadata:
  name: flowers
  namespace: ns-candidate
spec:
  predictor:
    tensorflow:
      storageUri: "gs://kfserving-samples/models/tensorflow/flowers-2"
Look inside routing-rule.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: routing-rule
  namespace: default
spec:
  gateways:
  - knative-serving/knative-ingress-gateway
  hosts:
  - example.com
  http:
  - route:
    - destination:
        host: flowers-predictor-default.ns-baseline.svc.cluster.local
      headers:
        request:
          set:
            Host: flowers-predictor-default.ns-baseline
        response:
          set:
            version: flowers-v1
      weight: 100
    - destination:
        host: flowers-predictor-default.ns-candidate.svc.cluster.local
      headers:
        request:
          set:
            Host: flowers-predictor-default.ns-candidate
        response:
          set:
            version: flowers-v2
      weight: 0

Deploy two versions of a Knative app.

kubectl apply -f $ITER8/samples/knative/quickstart/baseline.yaml
kubectl apply -f $ITER8/samples/knative/quickstart/experimentalservice.yaml
kubectl wait --for=condition=Ready ksvc/sample-app
Look inside baseline.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: sample-app
  namespace: default
spec:
  template:
    metadata:
      name: sample-app-v1
    spec:
      containers:
      - image: gcr.io/knative-samples/knative-route-demo:blue
        env:
        - name: T_VERSION
          value: "blue"
Look inside experimentalservice.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: sample-app
  namespace: default
spec:
  template:
    metadata:
      name: sample-app-v2
    spec:
      containers:
      - image: gcr.io/knative-samples/knative-route-demo:green
        env:
        - name: T_VERSION
          value: "green"
  traffic:
  - tag: current
    revisionName: sample-app-v1
    percent: 100
  - tag: candidate
    latestRevision: true
    percent: 0

Deploy two Seldon Deployments corresponding to two versions of an Iris classification model, along with an Istio virtual service to split traffic between them.

kubectl apply -f $ITER8/samples/seldon/quickstart/baseline.yaml
kubectl apply -f $ITER8/samples/seldon/quickstart/candidate.yaml
kubectl apply -f $ITER8/samples/seldon/quickstart/routing-rule.yaml
kubectl wait --for condition=ready --timeout=600s pods --all -n ns-baseline
kubectl wait --for condition=ready --timeout=600s pods --all -n ns-candidate
Look inside baseline.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
apiVersion: v1
kind: Namespace
metadata:
  name: ns-baseline
---
apiVersion: machinelearning.seldon.io/v1
kind: SeldonDeployment
metadata:
  name: iris
  namespace: ns-baseline
spec:
  predictors:
  - name: default
    graph:
      name: classifier
      modelUri: gs://seldon-models/sklearn/iris
      implementation: SKLEARN_SERVER
Look inside candidate.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
apiVersion: v1
kind: Namespace
metadata:
    name: ns-candidate
---
apiVersion: machinelearning.seldon.io/v1
kind: SeldonDeployment
metadata:
  name: iris
  namespace: ns-candidate
spec:
  predictors:
  - name: default
    graph:
      name: classifier
      modelUri: gs://seldon-models/xgboost/iris
      implementation: XGBOOST_SERVER
Look inside routing-rule.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: routing-rule
  namespace: default
spec:
  gateways:
  - istio-system/seldon-gateway
  hosts:
  - iris.example.com
  http:
  - route:
    - destination:
        host: iris-default.ns-baseline.svc.cluster.local
        port:
          number: 8000
      headers:
        response:
          set:
            version: iris-v1
      weight: 100
    - destination:
        host: iris-default.ns-candidate.svc.cluster.local
        port:
          number: 8000
      headers:
        response:
          set:
            version: iris-v2
      weight: 0

5. Generate requests

Generate requests to your app using Fortio as follows.

# URL_VALUE is the URL of the `bookinfo` application
URL_VALUE="http://$(kubectl -n istio-system get svc istio-ingressgateway -o jsonpath='{.spec.clusterIP}'):80/productpage"
sed "s+URL_VALUE+${URL_VALUE}+g" $ITER8/samples/istio/quickstart/fortio.yaml | kubectl apply -f -
Look inside fortio.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
apiVersion: batch/v1
kind: Job
metadata:
  name: fortio
spec:
  template:
    spec:
      volumes:
      - name: shared
        emptyDir: {}
      containers:
      - name: fortio
        image: fortio/fortio
        command: [ 'fortio', 'load', '-t', '6000s', '-qps', "16", '-json', '/shared/fortiooutput.json', '-H', 'Host: bookinfo.example.com', "$(URL)" ]
        env:
        - name: URL
          value: URL_VALUE
        volumeMounts:
        - name: shared
          mountPath: /shared
      - name: busybox
        image: busybox:1.28
        command: ['sh', '-c', 'echo busybox is running! && sleep 6000']
        volumeMounts:
        - name: shared
          mountPath: /shared
      restartPolicy: Never

Generate requests to your model as follows.

INGRESS_GATEWAY_SERVICE=$(kubectl get svc -n istio-system --selector="app=istio-ingressgateway" --output jsonpath='{.items[0].metadata.name}')
kubectl port-forward -n istio-system svc/${INGRESS_GATEWAY_SERVICE} 8080:80

curl -o /tmp/input.json https://raw.githubusercontent.com/kubeflow/kfserving/master/docs/samples/v1beta1/rollout/input.json
while true; do
curl -v -H "Host: example.com" localhost:8080/v1/models/flowers:predict -d @/tmp/input.json
sleep 0.2
done

Generate requests using Fortio as follows.

# URL_VALUE is the URL where your Knative application serves requests
URL_VALUE=$(kubectl get ksvc sample-app -o json | jq .status.address.url)
sed "s+URL_VALUE+${URL_VALUE}+g" $ITER8/samples/knative/quickstart/fortio.yaml | kubectl apply -f -
Look inside fortio.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
apiVersion: batch/v1
kind: Job
metadata:
name: fortio
spec:
template:
    spec:
    volumes:
    - name: shared
        emptyDir: {}
    containers:
    - name: fortio
        image: fortio/fortio
        command: ["fortio", "load", "-t", "6000s", "-qps", "16", "-json", "/shared/fortiooutput.json", $(URL)]
        env:
        - name: URL
        value: URL_VALUE
        volumeMounts:
        - name: shared
        mountPath: /shared
    - name: busybox
        image: busybox:1.28
        command: ['sh', '-c', 'echo busybox is running! && sleep 600']
        volumeMounts:
        - name: shared
        mountPath: /shared
    restartPolicy: Never

Generate requests using Fortio as follows.

URL_VALUE="http://$(kubectl -n istio-system get svc istio-ingressgateway -o jsonpath='{.spec.clusterIP}'):80"
sed "s+URL_VALUE+${URL_VALUE}+g" $ITER8/samples/seldon/quickstart/fortio.yaml | sed "s/6000s/600s/g" | kubectl apply -f -
Look inside fortio.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
apiVersion: batch/v1
kind: Job
metadata:
  name: fortio-requests
spec:
  template:
    spec:
      volumes:
      - name: shared
        emptyDir: {}
      containers:
      - name: fortio
        image: fortio/fortio
        command: [ 'fortio', 'load', '-t', '6000s', '-qps', "5", '-json', '/shared/fortiooutput.json', '-H', 'Host: iris.example.com', '-H', 'Content-Type: application/json', '-payload', '{"data": {"ndarray":[[6.8,2.8,4.8,1.4]]}}',  "$(URL)" ]
        env:
        - name: URL
          value: URL_VALUE/api/v1.0/predictions
        volumeMounts:
        - name: shared
          mountPath: /shared
      - name: busybox
        image: busybox:1.28
        command: ['sh', '-c', 'echo busybox is running! && sleep 6000']
        volumeMounts:
        - name: shared
          mountPath: /shared
      restartPolicy: Never
---
apiVersion: batch/v1
kind: Job
metadata:
  name: fortio-irisv1-rewards
spec:
  template:
    spec:
      volumes:
      - name: shared
        emptyDir: {}
      containers:
      - name: fortio
        image: fortio/fortio
        command: [ 'fortio', 'load', '-t', '6000s', '-qps', "0.7", '-json', '/shared/fortiooutput.json', '-H', 'Content-Type: application/json', '-payload', '{"reward": 1}',  "$(URL)" ]
        env:
        - name: URL
          value: URL_VALUE/seldon/ns-baseline/iris/api/v1.0/feedback
        volumeMounts:
        - name: shared
          mountPath: /shared
      - name: busybox
        image: busybox:1.28
        command: ['sh', '-c', 'echo busybox is running! && sleep 6000']
        volumeMounts:
        - name: shared
          mountPath: /shared
      restartPolicy: Never
---
apiVersion: batch/v1
kind: Job
metadata:
  name: fortio-irisv2-rewards
spec:
  template:
    spec:
      volumes:
      - name: shared
        emptyDir: {}
      containers:
      - name: fortio
        image: fortio/fortio
        command: [ 'fortio', 'load', '-t', '6000s', '-qps', "1", '-json', '/shared/fortiooutput.json', '-H', 'Content-Type: application/json', '-payload', '{"reward": 1}',  "$(URL)" ]
        env:
        - name: URL
          value: URL_VALUE/seldon/ns-candidate/iris/api/v1.0/feedback
        volumeMounts:
        - name: shared
          mountPath: /shared
      - name: busybox
        image: busybox:1.28
        command: ['sh', '-c', 'echo busybox is running! && sleep 6000']
        volumeMounts:
        - name: shared
          mountPath: /shared
      restartPolicy: Never

6. Define metrics

Iter8 introduces a Kubernetes CRD called Metric that makes it easy to use metrics from RESTful metric providers like Prometheus, New Relic, Sysdig and Elastic during experiments. Define the Iter8 metrics used in this experiment as follows.

kubectl apply -f $ITER8/samples/istio/quickstart/metrics.yaml
Look inside metrics.yaml
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
apiVersion: v1
kind: Namespace
metadata:
  labels:
    creator: iter8
    stack: istio
  name: iter8-istio
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: user-engagement
  namespace: iter8-istio
spec:
  params:
  - name: nrql
    value: |
      SELECT average(duration) FROM Sessions WHERE version='$name' SINCE $elapsedTime sec ago
  description: Average duration of a session
  type: Gauge
  provider: newrelic
  jqExpression: ".results[0] | .[] | tonumber"
  urlTemplate: http://metrics-mock.iter8-system.svc.cluster.local:8080/newrelic
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  labels:
    creator: iter8
  name: error-count
  namespace: iter8-istio
spec:
  description: Number of error responses
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      sum(increase(istio_requests_total{response_code=~'5..',reporter='source',destination_workload='$name',destination_workload_namespace='$namespace'}[${elapsedTime}s])) or on() vector(0)
  provider: prometheus
  type: Counter
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  labels:
    creator: iter8
  name: error-rate
  namespace: iter8-istio
spec:
  description: Fraction of requests with error responses
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      (sum(increase(istio_requests_total{response_code=~'5..',reporter='source',destination_workload='$name',destination_workload_namespace='$namespace'}[${elapsedTime}s])) or on() vector(0)) / (sum(increase(istio_requests_total{reporter='source',destination_workload='$name',destination_workload_namespace='$namespace'}[${elapsedTime}s])) or on() vector(0))
  provider: prometheus
  sampleSize: request-count
  type: Gauge
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  labels:
    creator: iter8
  name: le500ms-latency-percentile
  namespace: iter8-istio
spec:
  description: Less than 500 ms latency
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      (sum(increase(istio_request_duration_milliseconds_bucket{le='500',reporter='source',destination_workload='$name',destination_workload_namespace='$namespace'}[${elapsedTime}s])) or on() vector(0)) / (sum(increase(istio_request_duration_milliseconds_bucket{le='+Inf',reporter='source',destination_workload='$name',destination_workload_namespace='$namespace'}[${elapsedTime}s])) or on() vector(0))
  provider: prometheus
  sampleSize: iter8-istio/request-count
  type: Gauge
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  labels:
    creator: iter8
  name: mean-latency
  namespace: iter8-istio
spec:
  description: Mean latency
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      (sum(increase(istio_request_duration_milliseconds_sum{reporter='source',destination_workload='$name',destination_workload_namespace='$namespace'}[${elapsedTime}s])) or on() vector(0)) / (sum(increase(istio_requests_total{reporter='source',destination_workload='$name',destination_workload_namespace='$namespace'}[${elapsedTime}s])) or on() vector(0))
  provider: prometheus
  sampleSize: request-count
  type: Gauge
  units: milliseconds
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  labels:
    creator: iter8
  name: request-count
  namespace: iter8-istio
spec:
  description: Number of requests
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      sum(increase(istio_requests_total{reporter='source',destination_workload='$name',destination_workload_namespace='$namespace'}[${elapsedTime}s]))
  provider: prometheus
  type: Counter
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query

kubectl apply -f $ITER8/samples/kfserving/quickstart/metrics.yaml
Look inside metrics.yaml
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
apiVersion: v1
kind: Namespace
metadata:
  name: iter8-kfserving
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: user-engagement
  namespace: iter8-kfserving
spec:
  params:
  - name: nrql
    value: |
      SELECT average(duration) FROM Sessions WHERE version='$version' SINCE $elapsedTime sec ago
  description: Average duration of a session
  type: Gauge
  provider: newrelic
  jqExpression: ".results[0] | .[] | tonumber"
  urlTemplate: http://metrics-mock.iter8-system.svc.cluster.local:8080/newrelic
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: 95th-percentile-tail-latency
  namespace: iter8-kfserving
spec:
  description: 95th percentile tail latency
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      histogram_quantile(0.95, sum(rate(revision_app_request_latencies_bucket{namespace_name='$ns'}[${elapsedTime}s])) by (le))
  provider: prometheus
  sampleSize: iter8-kfserving/request-count
  type: Gauge
  units: milliseconds
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: error-count
  namespace: iter8-kfserving
spec:
  description: Number of error responses
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      sum(increase(revision_app_request_latencies_count{response_code_class!='2xx',namespace_name='$ns'}[${elapsedTime}s])) or on() vector(0)
  provider: prometheus
  type: Counter
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: error-rate
  namespace: iter8-kfserving
spec:
  description: Fraction of requests with error responses
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      (sum(increase(revision_app_request_latencies_count{response_code_class!='2xx',namespace_name='$ns'}[${elapsedTime}s])) or on() vector(0)) / (sum(increase(revision_app_request_latencies_count{namespace_name='$ns'}[${elapsedTime}s])) or on() vector(0))
  provider: prometheus
  sampleSize: iter8-kfserving/request-count
  type: Gauge
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: mean-latency
  namespace: iter8-kfserving
spec:
  description: Mean latency
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      (sum(increase(revision_app_request_latencies_sum{namespace_name='$ns'}[${elapsedTime}s])) or on() vector(0)) / (sum(increase(revision_app_request_latencies_count{namespace_name='$ns'}[${elapsedTime}s])) or on() vector(0))
  provider: prometheus
  sampleSize: iter8-kfserving/request-count
  type: Gauge
  units: milliseconds
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: request-count
  namespace: iter8-kfserving
spec:
  description: Number of requests
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      sum(increase(revision_app_request_latencies_count{namespace_name='$ns'}[${elapsedTime}s])) or on() vector(0)
  provider: prometheus
  type: Counter
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query

kubectl apply -f $ITER8/samples/knative/quickstart/metrics.yaml
Look inside metrics.yaml
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
apiVersion: v1
kind: Namespace
metadata:
  name: iter8-knative
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: user-engagement
  namespace: iter8-knative
spec:
  params:
  - name: nrql
    value: |
      SELECT average(duration) FROM Sessions WHERE version='$name' SINCE $elapsedTime sec ago
  description: Average duration of a session
  type: Gauge
  headerTemplates:
  - name: X-Query-Key
    value: t0p-secret-api-key
  provider: newrelic
  jqExpression: ".results[0] | .[] | tonumber"
  urlTemplate: http://metrics-mock.iter8-system.svc.cluster.local:8080/newrelic
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: 95th-percentile-tail-latency
  namespace: iter8-knative
spec:
  description: 95th percentile tail latency
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      histogram_quantile(0.95, sum(rate(revision_app_request_latencies_bucket{revision_name='$name'}[${elapsedTime}s])) by (le))
  provider: prometheus
  sampleSize: iter8-knative/request-count
  type: Gauge
  units: milliseconds
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: error-count
  namespace: iter8-knative
spec:
  description: Number of error responses
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      sum(increase(revision_app_request_latencies_count{response_code_class!='2xx',revision_name='$name'}[${elapsedTime}s])) or on() vector(0)
  provider: prometheus
  type: Counter
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: error-rate
  namespace: iter8-knative
spec:
  description: Fraction of requests with error responses
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      (sum(increase(revision_app_request_latencies_count{response_code_class!='2xx',revision_name='$name'}[${elapsedTime}s])) or on() vector(0)) / (sum(increase(revision_app_request_latencies_count{revision_name='$name'}[${elapsedTime}s])) or on() vector(0))
  provider: prometheus
  sampleSize: iter8-knative/request-count
  type: Gauge
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: mean-latency
  namespace: iter8-knative
spec:
  description: Mean latency
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      (sum(increase(revision_app_request_latencies_sum{revision_name='$name'}[${elapsedTime}s])) or on() vector(0)) / (sum(increase(revision_app_request_latencies_count{revision_name='$name'}[${elapsedTime}s])) or on() vector(0))
  provider: prometheus
  sampleSize: iter8-knative/request-count
  type: Gauge
  units: milliseconds
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: request-count
  namespace: iter8-knative
spec:
  description: Number of requests
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      sum(increase(revision_app_request_latencies_count{revision_name='$name'}[${elapsedTime}s])) or on() vector(0)
  provider: prometheus
  type: Counter
  urlTemplate: http://prometheus-operated.iter8-system:9090/api/v1/query

kubectl apply -f $ITER8/samples/seldon/quickstart/metrics.yaml
Look inside metrics.yaml
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
apiVersion: v1
kind: Namespace
metadata:
  name: iter8-seldon
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: 95th-percentile-tail-latency
  namespace: iter8-seldon
spec:
  description: 95th percentile tail latency
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      histogram_quantile(0.95, sum(rate(seldon_api_executor_client_requests_seconds_bucket{seldon_deployment_id='$sid',kubernetes_namespace='$ns'}[${elapsedTime}s])) by (le))
  provider: prometheus
  sampleSize: iter8-seldon/request-count
  type: Gauge
  units: milliseconds
  urlTemplate: http://seldon-core-analytics-prometheus-seldon.seldon-system/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: error-count
  namespace: iter8-seldon
spec:
  description: Number of error responses
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      sum(increase(seldon_api_executor_server_requests_seconds_count{code!='200',seldon_deployment_id='$sid',kubernetes_namespace='$ns'}[${elapsedTime}s])) or on() vector(0)
  provider: prometheus
  type: Counter
  urlTemplate: http://seldon-core-analytics-prometheus-seldon.seldon-system/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: error-rate
  namespace: iter8-seldon
spec:
  description: Fraction of requests with error responses
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      (sum(increase(seldon_api_executor_server_requests_seconds_count{code!='200',seldon_deployment_id='$sid',kubernetes_namespace='$ns'}[${elapsedTime}s])) or on() vector(0)) / (sum(increase(seldon_api_executor_server_requests_seconds_count{seldon_deployment_id='$sid',kubernetes_namespace='$ns'}[${elapsedTime}s])) or on() vector(0))
  provider: prometheus
  sampleSize: iter8-seldon/request-count
  type: Gauge
  urlTemplate: http://seldon-core-analytics-prometheus-seldon.seldon-system/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: mean-latency
  namespace: iter8-seldon
spec:
  description: Mean latency
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      (sum(increase(seldon_api_executor_client_requests_seconds_sum{seldon_deployment_id='$sid',kubernetes_namespace='$ns'}[${elapsedTime}s])) or on() vector(0)) / (sum(increase(seldon_api_executor_client_requests_seconds_count{seldon_deployment_id='$sid',kubernetes_namespace='$ns'}[${elapsedTime}s])) or on() vector(0))
  provider: prometheus
  sampleSize: iter8-seldon/request-count
  type: Gauge
  units: milliseconds
  urlTemplate: http://seldon-core-analytics-prometheus-seldon.seldon-system/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: request-count
  namespace: iter8-seldon
spec:
  description: Number of requests
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      sum(increase(seldon_api_executor_client_requests_seconds_sum{seldon_deployment_id='$sid',kubernetes_namespace='$ns'}[${elapsedTime}s])) or on() vector(0)
  provider: prometheus
  type: Counter
  urlTemplate: http://seldon-core-analytics-prometheus-seldon.seldon-system/api/v1/query
---
apiVersion: iter8.tools/v2alpha2
kind: Metric
metadata:
  name: user-engagement
  namespace: iter8-seldon
spec:
  description: Number of feedback requests
  jqExpression: .data.result[0].value[1] | tonumber
  params:
  - name: query
    value: |
      sum(increase(seldon_api_executor_server_requests_seconds_count{service='feedback',seldon_deployment_id='$sid',kubernetes_namespace='$ns'}[${elapsedTime}s])) or on() vector(0)
  provider: prometheus
  type: Gauge
  urlTemplate: http://seldon-core-analytics-prometheus-seldon.seldon-system/api/v1/query
Metrics in your environment

You can use metrics from any RESTful provider in Iter8 experiments.

In this tutorial, the metrics related to latency and error-rate objectives are collected by the Prometheus instance created in Step 3. The urlTemplate field in these metrics point to this Prometheus instance. If you wish to use these latency and error-rate metrics with your own application, change the urlTemplate values to match the URL of your Prometheus instance.

In this tutorial, the user-engagement metric is synthetically generated by a mock New Relic service/Prometheus service. For your application, replace this metric with any business metric you wish to optimize.

7. Launch experiment

Iter8 defines a Kubernetes resource called Experiment that automates A/B, A/B/n, Canary, and Conformance experiments. During an experiment, Iter8 can compare multiple versions, find, and safely promote the winning version (winner) based on business metrics and SLOs.

Launch the Iter8 experiment that orchestrates A/B testing for the app/ML model in this tutorial.

kubectl apply -f $ITER8/samples/istio/quickstart/experiment.yaml
Look inside experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: quickstart-exp
spec:
  # target identifies the service under experimentation using its fully qualified name
  target: bookinfo-iter8/productpage
  strategy:
    # this experiment will perform an A/B test
    testingPattern: A/B
    # this experiment will progressively shift traffic to the winning version
    deploymentPattern: Progressive
    actions:
      # when the experiment completes, promote the winning version using kubectl apply
      finish:
      - task: common/exec
        with:
          cmd: /bin/bash
          args: [ "-c", "kubectl -n bookinfo-iter8 apply -f {{ .promote }}" ]
  criteria:
    rewards:
    # (business) reward metric to optimize in this experiment
    - metric: iter8-istio/user-engagement
      preferredDirection: High
    objectives: # used for validating versions
    - metric: iter8-istio/mean-latency
      upperLimit: 100
    - metric: iter8-istio/error-rate
      upperLimit: "0.01"
    requestCount: iter8-istio/request-count
  duration: # product of fields determines length of the experiment
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about the app versions used in this experiment
    baseline:
      name: productpage-v1
      variables:
      - name: namespace # used by final action if this version is the winner
        value: bookinfo-iter8
      - name: promote # used by final action if this version is the winner
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/istio/quickstart/vs-for-v1.yaml
      weightObjRef:
        apiVersion: networking.istio.io/v1beta1
        kind: VirtualService
        namespace: bookinfo-iter8
        name: bookinfo
        fieldPath: .spec.http[0].route[0].weight
    candidates:
    - name: productpage-v2
      variables:
      - name: namespace # used by final action if this version is the winner
        value: bookinfo-iter8
      - name: promote # used by final action if this version is the winner
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/istio/quickstart/vs-for-v2.yaml
      weightObjRef:
        apiVersion: networking.istio.io/v1beta1
        kind: VirtualService
        namespace: bookinfo-iter8
        name: bookinfo
        fieldPath: .spec.http[0].route[1].weight

kubectl apply -f $ITER8/samples/kfserving/quickstart/experiment.yaml
Look inside experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: quickstart-exp
spec:
  target: flowers
  strategy:
    testingPattern: A/B
    deploymentPattern: Progressive
    actions:
      # when the experiment completes, promote the winning version using kubectl apply
      finish:
      - task: common/exec
        with:
          cmd: /bin/bash
          args: [ "-c", "kubectl apply -f {{ .promote }}" ]
  criteria:
    requestCount: iter8-kfserving/request-count
    rewards: # Business rewards
    - metric: iter8-kfserving/user-engagement
      preferredDirection: High # maximize user engagement
    objectives:
    - metric: iter8-kfserving/mean-latency
      upperLimit: 2000
    - metric: iter8-kfserving/95th-percentile-tail-latency
      upperLimit: 5000
    - metric: iter8-kfserving/error-rate
      upperLimit: "0.01"
  duration:
    intervalSeconds: 10
    iterationsPerLoop: 25
  versionInfo:
    # information about model versions used in this experiment
    baseline:
      name: flowers-v1
      weightObjRef:
        apiVersion: networking.istio.io/v1alpha3
        kind: VirtualService
        name: routing-rule
        namespace: default
        fieldPath: .spec.http[0].route[0].weight
      variables:
      - name: ns
        value: ns-baseline
      - name: promote
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/kfserving/quickstart/promote-v1.yaml
    candidates:
    - name: flowers-v2
      weightObjRef:
        apiVersion: networking.istio.io/v1alpha3
        kind: VirtualService
        name: routing-rule
        namespace: default
        fieldPath: .spec.http[0].route[1].weight
      variables:
      - name: ns
        value: ns-candidate
      - name: promote
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/kfserving/quickstart/promote-v2.yaml

kubectl apply -f $ITER8/samples/knative/quickstart/experiment.yaml
Look inside experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: quickstart-exp
spec:
  # target identifies the knative service under experimentation using its fully qualified name
  target: default/sample-app
  strategy:
    testingPattern: A/B
    deploymentPattern: Progressive
    actions:
      finish: # run the following sequence of tasks at the end of the experiment
      - task: common/exec # promote the winning version
        with:
          cmd: /bin/sh
          args:
          - "-c"
          - |
            kubectl apply -f https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/knative/quickstart/{{ .promote }}.yaml
  criteria:
    requestCount: iter8-knative/request-count
    rewards: # Business rewards
    - metric: iter8-knative/user-engagement
      preferredDirection: High # maximize user engagement
    objectives:
    - metric: iter8-knative/mean-latency
      upperLimit: 50
    - metric: iter8-knative/95th-percentile-tail-latency
      upperLimit: 100
    - metric: iter8-knative/error-rate
      upperLimit: "0.01"
  duration:
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about app versions used in this experiment
    baseline:
      name: sample-app-v1
      weightObjRef:
        apiVersion: serving.knative.dev/v1
        kind: Service
        name: sample-app
        namespace: default
        fieldPath: .spec.traffic[0].percent
      variables:
      - name: promote
        value: baseline
    candidates:
    - name: sample-app-v2
      weightObjRef:
        apiVersion: serving.knative.dev/v1
        kind: Service
        name: sample-app
        namespace: default
        fieldPath: .spec.traffic[1].percent
      variables:
      - name: promote
        value: candidate

kubectl apply -f $ITER8/samples/seldon/quickstart/experiment.yaml
Look inside experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
apiVersion: iter8.tools/v2alpha2
kind: Experiment
metadata:
  name: quickstart-exp
spec:
  target: iris
  strategy:
    testingPattern: A/B
    deploymentPattern: Progressive
    actions:
      # when the experiment completes, promote the winning version using kubectl apply
      finish:
      - task: common/exec
        with:
          cmd: /bin/bash
          args: [ "-c", "kubectl apply -f {{ .promote }}" ]
  criteria:
    requestCount: iter8-seldon/request-count
    rewards: # Business rewards
    - metric: iter8-seldon/user-engagement
      preferredDirection: High # maximize user engagement
    objectives:
    - metric: iter8-seldon/mean-latency
      upperLimit: 2000
    - metric: iter8-seldon/95th-percentile-tail-latency
      upperLimit: 5000
    - metric: iter8-seldon/error-rate
      upperLimit: "0.01"
  duration:
    intervalSeconds: 10
    iterationsPerLoop: 10
  versionInfo:
    # information about model versions used in this experiment
    baseline:
      name: iris-v1
      weightObjRef:
        apiVersion: networking.istio.io/v1alpha3
        kind: VirtualService
        name: routing-rule
        namespace: default
        fieldPath: .spec.http[0].route[0].weight
      variables:
      - name: ns
        value: ns-baseline
      - name: sid
        value: iris
      - name: promote
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/seldon/quickstart/promote-v1.yaml
    candidates:
    - name: iris-v2
      weightObjRef:
        apiVersion: networking.istio.io/v1alpha3
        kind: VirtualService
        name: routing-rule
        namespace: default
        fieldPath: .spec.http[0].route[1].weight
      variables:
      - name: ns
        value: ns-candidate
      - name: sid
        value: iris
      - name: promote
        value: https://raw.githubusercontent.com/iter8-tools/iter8/master/samples/seldon/quickstart/promote-v2.yaml

The process automated by Iter8 during this experiment is depicted below.

Iter8 automation

8. Observe experiment

Observe the experiment in realtime.

a) Observe metrics

Install iter8ctl. You can change the directory where iter8ctl binary is installed by changing GOBIN below.

GO111MODULE=on GOBIN=/usr/local/bin go get github.com/iter8-tools/iter8ctl@v0.1.3

Periodically describe the experiment.

while clear; do
kubectl get experiment quickstart-exp -o yaml | iter8ctl describe -f -
sleep 8
done

Look inside metrics summary

The iter8ctl output will be similar to the following.

****** Overview ******
Experiment name: quickstart-exp
Experiment namespace: default
Target: default/sample-app
Testing pattern: A/B
Deployment pattern: Progressive

****** Progress Summary ******
Experiment stage: Running
Number of completed iterations: 8

****** Winner Assessment ******
App versions in this experiment: [sample-app-v1 sample-app-v2]
Winning version: sample-app-v2
Version recommended for promotion: sample-app-v2

****** Objective Assessment ******
> Identifies whether or not the experiment objectives are satisfied by the most recently observed metrics values for each version.
+--------------------------------------------+---------------+---------------+
|                 OBJECTIVE                  | SAMPLE-APP-V1 | SAMPLE-APP-V2 |
+--------------------------------------------+---------------+---------------+
| iter8-knative/mean-latency <=              | true          | true          |
|                                     50.000 |               |               |
+--------------------------------------------+---------------+---------------+
| iter8-knative/95th-percentile-tail-latency | true          | true          |
| <= 100.000                                 |               |               |
+--------------------------------------------+---------------+---------------+
| iter8-knative/error-rate <=                | true          | true          |
|                                      0.010 |               |               |
+--------------------------------------------+---------------+---------------+

****** Metrics Assessment ******
> Most recently read values of experiment metrics for each version.
+--------------------------------------------+---------------+---------------+
|                   METRIC                   | SAMPLE-APP-V1 | SAMPLE-APP-V2 |
+--------------------------------------------+---------------+---------------+
| iter8-knative/request-count                |      1213.625 |       361.962 |
+--------------------------------------------+---------------+---------------+
| iter8-knative/user-engagement              |        10.023 |        14.737 |
+--------------------------------------------+---------------+---------------+
| iter8-knative/mean-latency                 |         1.133 |         1.175 |
| (milliseconds)                             |               |               |
+--------------------------------------------+---------------+---------------+
| iter8-knative/95th-percentile-tail-latency |         4.768 |         4.824 |
| (milliseconds)                             |               |               |
+--------------------------------------------+---------------+---------------+
| iter8-knative/error-rate                   |         0.000 |         0.000 |
+--------------------------------------------+---------------+---------------+

As the experiment progresses, you should eventually see that all of the objectives reported as being satisfied by both versions and the candidate improves over the baseline version in terms of the reward metric. The candidate is identified as the winner and is recommended for promotion.

b) Observe traffic

kubectl -n bookinfo-iter8 get vs bookinfo -o json --watch | jq .spec.http[0].route
Look inside traffic summary

The kubectl output will be similar to the following.

[
  {
    "destination": {
      "host": "productpage",
      "port": {
        "number": 9080
      },
      "subset": "productpage-v1"
    },
    "weight": 35
  },
  {
    "destination": {
      "host": "productpage",
      "port": {
        "number": 9080
      },
      "subset": "productpage-v2"
    },
    "weight": 65
  }
]


kubectl get vs routing-rule -o json --watch | jq .spec.http[0].route
Look inside traffic summary
[
  {
    "destination": {
      "host": "flowers-predictor-default.ns-baseline.svc.cluster.local"
    },
    "headers": {
      "request": {
        "set": {
          "Host": "flowers-predictor-default.ns-baseline"
        }
      },
      "response": {
        "set": {
          "version": "flowers-v1"
        }
      }
    },
    "weight": 5
  },
  {
    "destination": {
      "host": "flowers-predictor-default.ns-candidate.svc.cluster.local"
    },
    "headers": {
      "request": {
        "set": {
          "Host": "flowers-predictor-default.ns-candidate"
        }
      },
      "response": {
        "set": {
          "version": "flowers-v2"
        }
      }
    },
    "weight": 95
  }
]

kubectl get ksvc sample-app -o json --watch | jq .status.traffic
Look inside traffic summary

The kubectl output will be similar to the following.

[
{
    "latestRevision": false,
    "percent": 45,
    "revisionName": "sample-app-v1",
    "tag": "current",
    "url": "http://current-sample-app.default.example.com"
},
{
    "latestRevision": true,
    "percent": 55,
    "revisionName": "sample-app-v2",
    "tag": "candidate",
    "url": "http://candidate-sample-app.default.example.com"
}
]


kubectl get vs routing-rule -o json --watch | jq .spec.http[0].route
Look inside traffic summary
[
  {
    "destination": {
      "host": "iris-default.ns-baseline.svc.cluster.local",
      "port": {
        "number": 8000
      }
    },
    "headers": {
      "response": {
        "set": {
          "version": "iris-v1"
        }
      }
    },
    "weight": 25
  },
  {
    "destination": {
      "host": "iris-default.ns-candidate.svc.cluster.local",
      "port": {
        "number": 8000
      }
    },
    "headers": {
      "response": {
        "set": {
          "version": "iris-v2"
        }
      }
    },
    "weight": 75
  }

As the experiment progresses, you should see traffic progressively shift from the baseline version to the candidate version.

c) Observe progress

kubectl get experiment quickstart-exp --watch
Look inside progress summary

The kubectl output will be similar to the following.

NAME             TYPE     TARGET               STAGE     COMPLETED ITERATIONS   MESSAGE
quickstart-exp   Canary   default/sample-app   Running   1                      IterationUpdate: Completed Iteration 1
quickstart-exp   Canary   default/sample-app   Running   2                      IterationUpdate: Completed Iteration 2
quickstart-exp   Canary   default/sample-app   Running   3                      IterationUpdate: Completed Iteration 3
quickstart-exp   Canary   default/sample-app   Running   4                      IterationUpdate: Completed Iteration 4
quickstart-exp   Canary   default/sample-app   Running   5                      IterationUpdate: Completed Iteration 5
quickstart-exp   Canary   default/sample-app   Running   6                      IterationUpdate: Completed Iteration 6
quickstart-exp   Canary   default/sample-app   Running   7                      IterationUpdate: Completed Iteration 7
quickstart-exp   Canary   default/sample-app   Running   8                      IterationUpdate: Completed Iteration 8
quickstart-exp   Canary   default/sample-app   Running   9                      IterationUpdate: Completed Iteration 9

When the experiment completes, you will see the experiment stage change from Running to Completed.

Understanding what happened
  1. You created two versions of your app/ML model.
  2. You generated requests for your app/ML model versions. At the start of the experiment, 100% of the requests are sent to the baseline and 0% to the candidate.
  3. You created an Iter8 experiment with A/B testing pattern and progressive deployment pattern. In each iteration, Iter8 observed the latency and error-rate metrics collected by Prometheus, and the user-engagement metric from New Relic/Prometheus; Iter8 verified that the candidate satisfied all objectives, verified that the candidate improved over the baseline in terms of user-engagement, identified candidate as the winner, progressively shifted traffic from the baseline to the candidate, and promoted the candidate.

9. Cleanup

kubectl delete -f $ITER8/samples/istio/quickstart/fortio.yaml
kubectl delete -f $ITER8/samples/istio/quickstart/experiment.yaml
kubectl delete namespace bookinfo-iter8

kubectl delete -f $ITER8/samples/kfserving/quickstart/experiment.yaml
kubectl delete -f $ITER8/samples/kfserving/quickstart/baseline.yaml
kubectl delete -f $ITER8/samples/kfserving/quickstart/candidate.yaml

kubectl delete -f $ITER8/samples/knative/quickstart/fortio.yaml
kubectl delete -f $ITER8/samples/knative/quickstart/experiment.yaml
kubectl delete -f $ITER8/samples/knative/quickstart/experimentalservice.yaml

kubectl delete -f $ITER8/samples/seldon/quickstart/fortio.yaml
kubectl delete -f $ITER8/samples/seldon/quickstart/experiment.yaml
kubectl delete -f $ITER8/samples/seldon/quickstart/baseline.yaml
kubectl delete -f $ITER8/samples/seldon/quickstart/candidate.yaml
